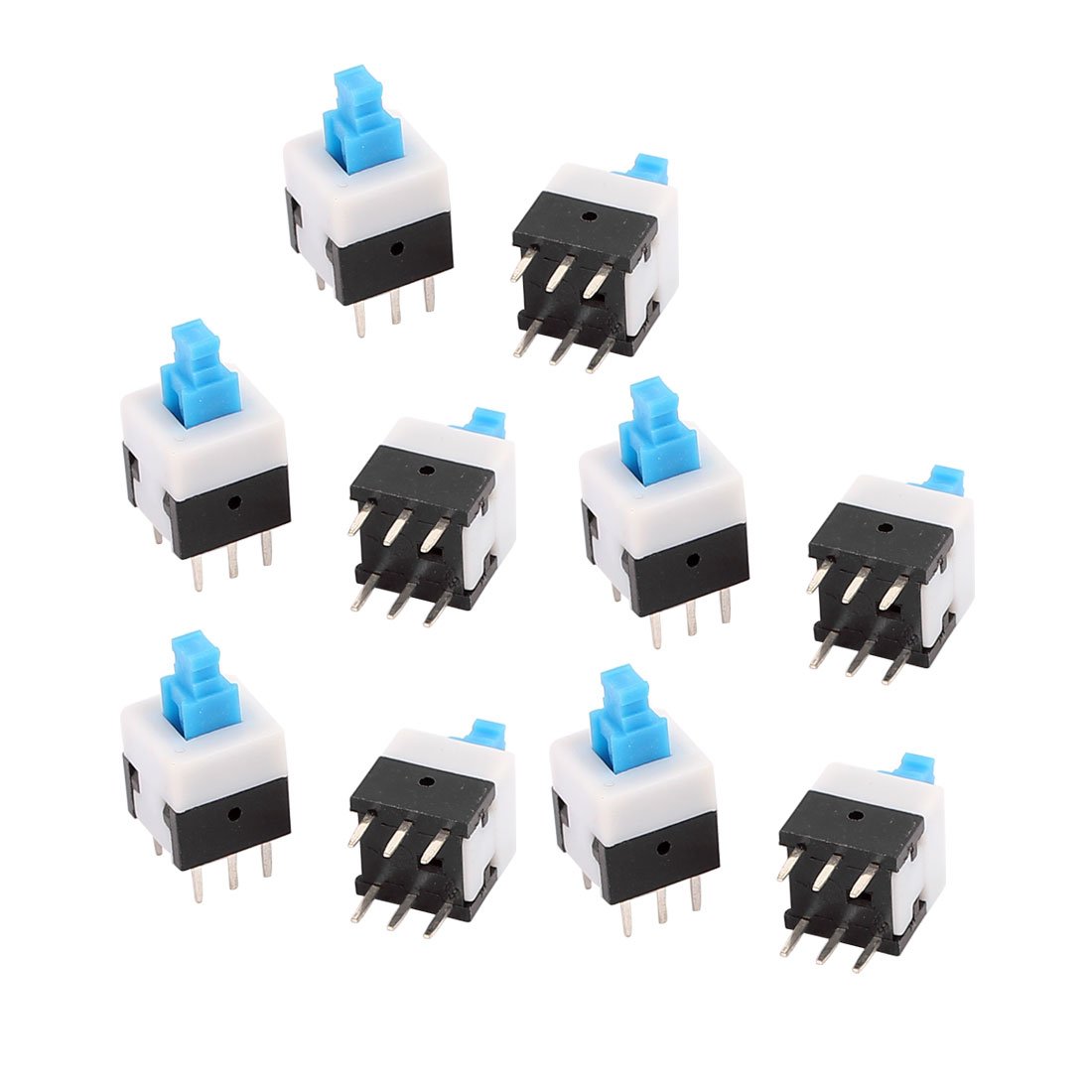

uxcell 10Pcs 6 Pin Square 8mmx8mm Self-Locking DPDT Mini Push Button Switch
Price is below average
Current Price
$2.78
Average
$3.34
Min Price
$2.78
Max Price
$3.54
Price dynamics
17%
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hello guys in this video I am going to show you how to use this 8 by 8 mm self locking dpdt switch so let's get started [Music] it has two conditions this is in the pull condition and this is in the push condition and it has six pins if you keep the switch in this way then you can draw it spin diagram like this there is no internal connection between this side and this side the spin number one two three four five and six pin number three and minima six are the poles and pin number one and two are the throws for pole one and pin number five and four at the throws for pole two dp/dt means double pole double throw as it has two conditions so we have to draw both the condition the two conditions are pushed and pulled the first I'll draw the poor condition and here and draw the connections in the push condition so whenever the switch is in full condition then this pole is internally connecte
