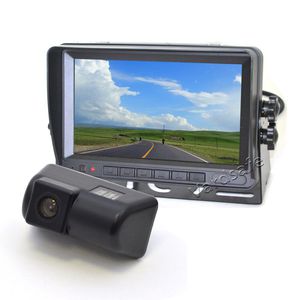

Vardsafe VS302M OEM Backup Camera & 7 Inch Self Standing Monitor for Ford Transit Connect (2010-2018)

this is a Ford Transit camera installation video we'll begin by removing the rear door panel and locating the inside light removing the clip and by squeezing the pins removing the factory light next we're going to mount the transit camera piece when installing the camera be sure to slide the camera from side to side and ensure both clips snap into place next we're going to tap into the factory lamp harness orange with a black stripe will be power and black will be ground this will supply light for the license plate lamp now we'll plug in the video and power harnesses for the camera we'll also remove the driver side taillight next we're going to run the wires through the grommet for the door using wire insert through the grommet fish straight through now we're going to tape the harness onto the wire to pull it through using a little lubricant to help it through easier when you're finishe
