Main Features:
4.3 inch LCD Screen Monitor Available for VCD/DVD/Reversing Camera
2 channels video input,full color display.
Waterproof IP 67 Rear View camera, Can be used both in car and home
HD 7070 Mirror imaging sensor with No Grid Lines
Includes 18 IR LED, support 10-15 ft night vision
120°wide viewing angle
Applicable to variety of Vehicles: Car,BUS,Truck,RV,Mortorhome,Van Heavy Duty etc
Can help avoid incidents and accidents abrasion well
Easy to install

Specification:

LCD Sceen Monitor:

Screen size: 4.3 inch
Resolution: 800*480 Pixels
Aspect Ratio: 16:9
Power Supply: DC12V-24V
Color: Black
Housing: ABS
Power Consumption: 2W
Standard: PAL/NTSC
Product size: 127x88x25mm
Product weight: 143g
Operating temperature:-20 °c + 50 ℃
Storage temperature:-30 °c + 70 ℃
With 2 video input: Reverse Prior

Rear View Camera

Image Sensor:HD 7070 Mirror No Grid Lines
Horizontal Resolution:480 TVL
Minimum Illumination:0Lux
Number of pixels:720(H)*586(V)
Lens: 2.8mm
Diagonal Viewing Angle:120 degree
Signal to noise ratio:>48db(AGC OFF)
TV System:PAL
Scan frequency:50Hz-60Hz
Electronic Shutter: 1/60 ~ 1/15,000sec
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision: Yes
Synchronous System:International Synchronization
work Temperature: -20°C~+60°C
Waterproof:IP 67
Video Output:RCA Connetor interface,1.0Vp-p.1.5ω.
Power:DC 12V-24V
Current Consumption:Less than 50MA

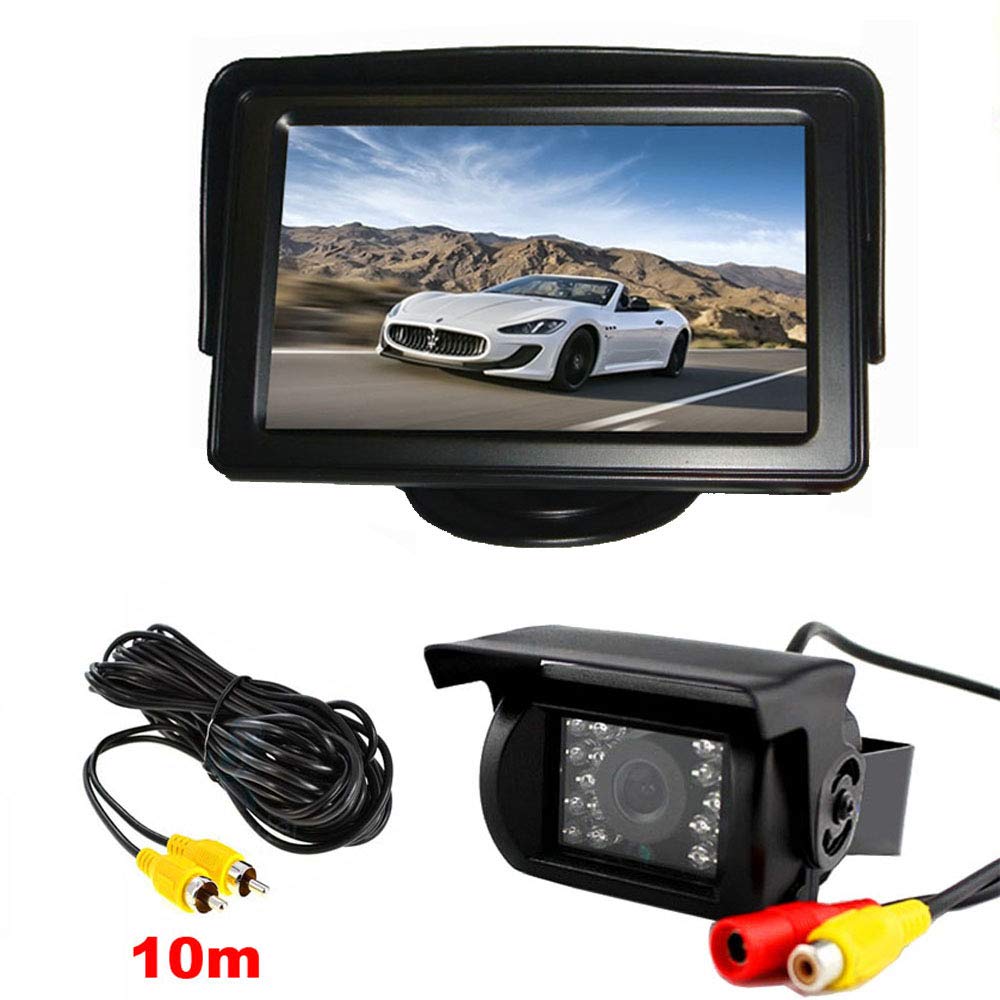

Package Includes:

1 x 4.3 Inch car Rearview Monitor
1 x 18LED IR Backup Camera
1 x 10m Video Cable
2 x DC Power Cable
1 x User manual
1 x Cable Connection Diagram
