Viking RAD-1A Remote Access Device Computers, Electronics, Office Supplies, Computing

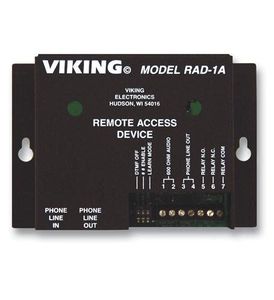

Hey folks, my name is Andrew with Viking Electronics and today we are programming the RAD-1A for paging. Lots of customers today with legacy paging equipment are discovering they need an adapter to make their paging work. Customers are turning to the RAD-1A to bridge the technology gap for analog paging systems. This video covers installing and programming the RAD-1A for paging. Before we dive in, make sure and click the subscribe button and share this video. If you have any questions or tips after the video is over, please leave a comment down below. Alright, let's dive in! Connect the paging source to the phone line input on the RAD-1A with an RJ11 jack. The RAD-1A screw terminals - pins one and two - output 600 Ohm audio to the paging amplifier. The RAD-1A provides a Form-C dry contact for amplifiers that require an external trigger. Pin 5 is normally open, pin 6 is normally closed,
