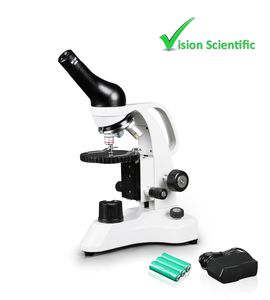

This Vision Scientific 3050 monocular compound microscope has a 45° inclined head that rotates 360°, and comes with a 10x widefield eyepiece with a pointer. The eyepiece pointer ensures that definite points on the slide can be easily and quickly identified.
The 40xR objective is retractable and spring-loaded to prevent damage to slides and objectives when focusing. It is also sealed to protect against further damage that can be caused from contact with liquid or oils.
Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field.
Specifications
- Head: Monocular, 45° inclined, rotates 360°
- Eyepiece: WF 10x with pointer
- Magnification: 40x, 100x, 400x
- Nosepiece: 3 hole objective turret; reverse position with click stops
- Objective Lens: 4x, 10x, 40xR DIN achromatic
- Stage: Round gliding stage
- Focusing: Separate coarse and fine focusing
- Condenser: Frosted glass, single lens
- Diaphragm: Five hole disc diaphragm with white frosted filter
- Light Source: LED illumination with intensity control
- Power: 110V or Rechargeable (Cordless)
Packing List
- Monocular biological microscope with LED illumination
- One 10x widefield eyepiece with pointer
- 4x, 10x, 40xR objectives
- Round gliding stage with 2 Stage clips
- Three rechargeable batteries
- Power adaptor
- One dust cover
- User manual
Vision Scientific VME0006-RC Monocular Compound Microscope, 10x WF Eyepiece, 40x-400x Magnification, LED Illumination, Separate Coarse & Fine Focus, Gliding Round Stage, Rechargeable Battery
This Vision Scientific 3050 monocular compound microscope has a 45° inclined head that rotates 360°, and comes with a 10x widefield eyepiece with a pointer. The eyepiece pointer ensures that definite points on the slide can be easily and quickly identified.
The 40xR objective is retractable and spring-loaded to prevent damage to slides and objectives when focusing. It is also sealed to protect against further damage that can be caused from contact with liquid or oils.
Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field.
Specifications
- Head: Monocular, 45° inclined, rotates 360°
- Eyepiece: WF 10x with pointer
- Magnification: 40x, 100x, 400x
- Nosepiece: 3 hole objective turret; reverse position with click stops
- Objective Lens: 4x, 10x, 40xR DIN achromatic
- Stage: Round gliding stage
- Focusing: Separate coarse and fine focusing
- Condenser: Frosted glass, single lens
- Diaphragm: Five hole disc diaphragm with white frosted filter
- Light Source: LED illumination with intensity control
- Power: 110V or Rechargeable (Cordless)
Packing List
- Monocular biological microscope with LED illumination
- One 10x widefield eyepiece with pointer
- 4x, 10x, 40xR objectives
- Round gliding stage with 2 Stage clips
- Three rechargeable batteries
- Power adaptor
- One dust cover
- User manual
