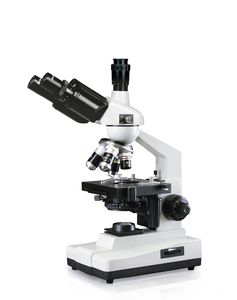

This Vision Scientific VME0007-TT-100-LD high quality trinocular compound microscope comes with a pair of 10x widefield eyepieces with a pointer, and a pair of 25x widefield eyepieces. The siedentopt head has 48 to 75 mm interpupillary adjustment.

The 40xR and 100xR objectives are retractable and spring-loaded to prevent damage to slides and objectives when focusing.

Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field. 1.25 NA Abbe condenser with iris diaphragm for precise light control to match with the objective in use.

Specifications

• Head: Trinocular, 30° inclined, rotates 360°
• Eyepiece: Pair of WF 10x eyepieces (one with pointer), pair of WF 25x eyepieces
• Magnification: 40x, 100x, 250x, 400x, 1000x, 2500x
• Objective Lens: 4x, 10x, 40xR, 100xR oil DIN achromatic
• Stage: Double layer, built-in mechanical stage; 5 x 4 ½” (W x D) with a focusing range of 13/32”and a travelling range of 2 ¾ x ¾” (W x D); Low position coaxial x-y control
• Focusing: Coaxial coarse and fine focusing
• Condenser: 1.25 NA Abbe lens
• Diaphragm: Iris diaphragm with a swing-out filter holder
• Light Source: LED illumination with intensity control

Warranty

• 5 year limited warranty excluding bulbs

Packing List

• Trinocular compound microscope with LED illumination
• Pair of 10x widefield eyepieces (one with a pointer)
• Pair of 25x widefield eyepieces
• 4x, 10x, 40xR, 100xR objectives
• Double layer, built-in mechanical stage with 2 Stage clips
• One dust cover
• User manual
