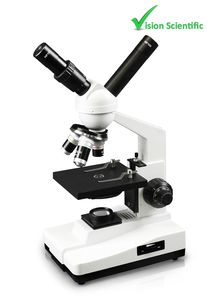

This compound microscope is ideal for elementary to high school instruction. Cool-to-touch, long-lasting LED Illumination is equipped with intensity control. Ball-bearing objective turret is mounted, allowing for smooth alignment while positive click stops ensure instant and precise magnification.
The (Widefield) WF 10x eyepieces are interchangeable, allowing for increased magnification from 40x to 400x. DIN achromatic objectives are parfocaled and parcentered, providing sharp, color-corrected images. Coaxial coarse and fine focusing knobs are positioned low on the bracket near the base, making certain that adjustments are made with maximum stability and minimum strain.
The rechargeable battery enhances flexibility, adding a cordless feature, which guarantees easy transport and increased mobility. Rugged cast aluminum with gray enamel finish. Packed in a fitted styrofoam box; includes a dust cover & an instruction manual. 5-year limited warranty excluding bulbs.
Specifications
- Head: Monocular, 45° inclined, rotates 360°
- Eyepiece: WF 10x with pointer
- Magnification: 40x, 100x, 400x
- Objective Lens: 4x, 10x, 40xS DIN achromatic
- Stage: Large Plain stage with a pair of stage clips
- Focusing: Coaxial coarse and fine focus
- Condenser: 0.65 N.A. lens
- Diaphragm: 5 hole disc diaphragm
- Light Source: LED Illumination with intensity control
- Power: 110V or Cordless rechargeable battery
Packing List
- Monocular compound microscope with LED illumination
- One 10x widefield eyepiece with pointer
- One 20x widefield eyepiece
- 4x, 10x, 40xR objectives
- Large stage with 2 Stage clips
- Three rechargeable batteries
- Power adaptor
- One dust cover
- User manual
