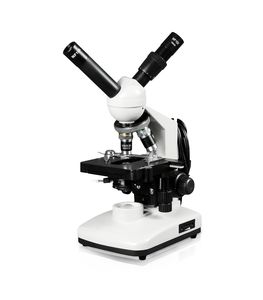

This Vision Scientific compound microscope has a 45° inclined dual viewing head that reduces neck and eye strain. The WF 10x eyepieces are interchangeable, allowing for increased magnification from 40x—1000x. The 40xR and 100xR objectives are retractable and spring-loaded to prevent damage to slides and objectives when focusing. For added safety, it is equipped with a rack-stop which helps to prevent damage to slides and objective lenses, while the slip-clutch system protects gears from damage. Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background.

Specifications

• Head: Dual view, 45° inclined, rotates 360°
• Eyepiece: Pair of WF 10x (one with scale pointer)
• Magnification: 40x, 80x, 100x
• Nosepiece: Revolving reversed quadruple objective
• Objective Lens: 4x, 10x, 40xR, 100xR oil DIN achromatic
• Stage: Built-in, double-layer mechanical stage (140mm x 140mm), smooth X/Y calibrated movement with cross travel range 75mm x 50mm
• Focusing: Coaxial coarse and fine focusing
• Condenser: 1.25 NA Abbe lens
• Diaphragm: Iris diaphragm with a swing-out filter holder
• Light Source: LED illumination with intensity control
• Power: 110V corded with cord wrap

Packing List

• Dual view compound microscope with LED illumination
• Pair of 10x widefield eyepieces (one with calibrated pointer)
• 4x, 10x, 40xR, 100xR objectives
• Immersion oil for 100xR objective
• Double layer, built-in mechanical stage with 2 Stage clips
• One dust cover
• User manual
