Product Description

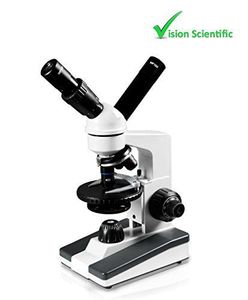

This dual view compound microscope has two 10x widefield eyepiece one with a pointer, and a 25x widefield eyepiece. The 45° inclined dual viewing head reduces eye and neck strain and rotates 360° to provide trouble-free observation for two people. An eyepiece pointer ensures that definite points on the slide can be easily designated and quickly identified.
Achromatic objectives are parfocaled, parcentered and color-coded to provide sharp, color-corrected magnified images. The 40xR objective is retractable and spring-loaded to prevent damage to slides or objectives when focusing, and is sealed to protect against liquids and oils.
Specifications
- Head: 45° inclined Dual View, rotates 360°
- Eyepiece: two WF 10X with one pointer, one WF 25X Eyepiece
- Magnification: 40x, 100x, 250x, 400x, 1000x
- Objective Lens: 4x, 10x, 40xR achromatic objectives
- Stage: Round Gliding Stage
- Focusing: Coaxial coarse and fine focusing gear movement for smooth operation
- Diaphragm: Five hole disc diaphragm with white frosted filter
- Light Source: LED illumination with intensity control
- Power: 110V or Rechargeable (Cordless) batteries
- Warranty：5 year limited warranty excluding bulbs
Packing List
- Dual view biological microscope with LED illumination
- Two 10x wide-field eyepieces one with pointer
- One 25x wide-field eyepieces
- 4x, 10x, 40x objectives
- Round gliding stage with 2 Stage clips
- 3AA batteries
- Power adaptor
- One dust cover
- User Manual
