Part Number:290440009-02

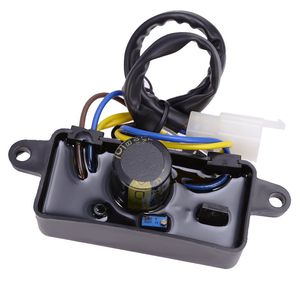

3500 To 5000 Watt Replacement Generator Automatic Voltage Regulator(Avr) For China-Made 3000/3200/3500/3550/3600/4000/4250/4500/4550 Watt 6hp/6.5hp/7hp Portable Gas Generators. It Can Handle A Maximum Surge Power Of 5500 Watts.
Built-In Full-Wave Output Bridge Rectification.
Voltage Output Increase With Loading.
Stable Voltage Output With Negative Voltage Feedback.
Over Voltage, Over Current And Short Circuit Protection.
Large Manual Adjustable Voltage Output Range Of 160v ~ 260v For 240v Output.
Maximum Output: Dc 90v 2.5a.
Excitation Voltage: 90v.
Feedback Voltage: 16 ~ 20v.
Frequency: 50/60hz.
Ac Voltage Output: 120v/240v.
Auto Voltage Adjusting Accuracy: ≤ 1%.
Maximum Temperature Rise: 130c Or 266f.
Continuous Working Time: ≥ 20 Hours.
Installation-Center Distance: 99 1mm (About 3 15/16 In).
Note: A higher output AVR definitely works perfect on a generator of low power output while on the contrary, a low power output AVR CAN NOT be used for a generator of higher power output.
