Attention:
This product is in the 850MHz band, it only supports mobile phone cards in the 850MHz band.
Support 2G 3G 4G calls.
Internet access only supports 3G.
This antenna is not available for Verizon 4G LTE networks.
Before purchase, please make sure your phone network's frequency is compatible with this signal booster. Return is NOT accepted if the signal booster is not effective for your phone network. Please feel free to contact us if you need help choosing signal boosters.
NOTE:The outdoor signal has to have 3 bars at least, then the unit will work indoor.Otherwise this there is no signals indoor.
Specification:
Brand new
Frequency Range: 824-849MHz (Up Link); 869-894MHz (Down Link)
Maximum gain: 60db(Up Link); 65db(Down Link)
Standard Output Power: 26dbm～29dbm(Up Link); 25dbm～27dbm(Down Link)
Standard Input Power: ﹣32dbm～﹣27dbn(Up Link) ;﹣38dbm～﹣37dbn(Down Link)
Noise Figure: ≤5db
Repeater Coverage: 50 to 800 M²
Return Loss: ≤﹣18db
Input Power: AC 140V - 265V, 50/60Hz
Stray Radiation: ≤﹣36dbm
The repeater works with two antennas (included in the kit).
One is the indoor antenna which communicates with your cell phone or laptop data card,and another one is the outdoor antenna which communicates with the cell tower
Mainly used in office buildings, shop-ping malls, large underground parking field, exhibition center, workshop

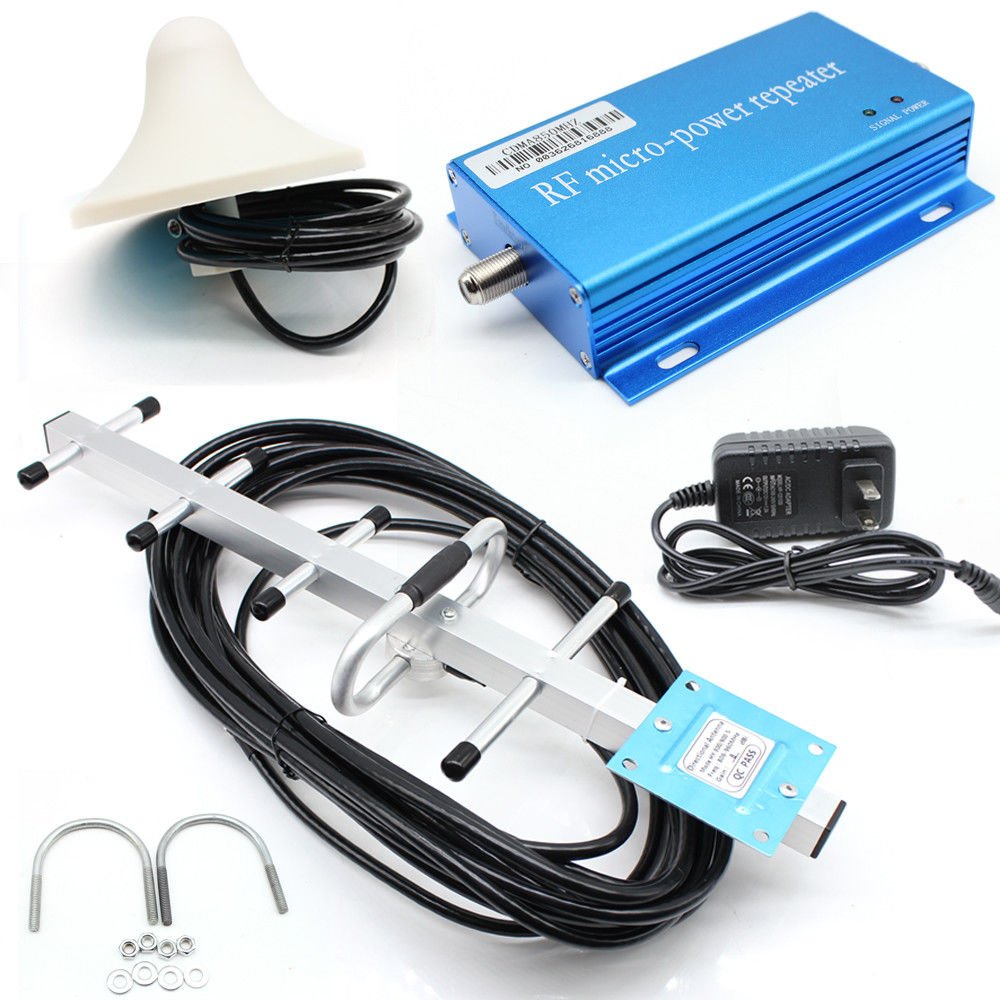

Package Included:
1pc x 850MHz Repeater
1pc x Outdoor Yagi Antenna with 10m Cable
1pc x Ceiling Antenna with 3m Cable
1pc x Charger
1pc x User Manual
