Description
LCD Controller Board:
HDMI TYPE-C LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
USB Port: Used For Keyboard And Touch Panel Controller Card
Video Input: HDMI TYPE-C
Audio Input: HDMI TYPE-C
Audio Output: Earphone Speaker (4Pin PH2.0 connector)
Reversing: Support. It Automatically Switch To AV When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 101mm x 66mm x 12mm
Note: Please use Date Type-C Cable. It maybe can't work if you cable is power type-c cable.
The Type-C connector only support one side. If not work. Please Insert by turning 180 degrees.
17" 1920X1200 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920RGB)×1200
Outline Size 383.97 × 256.35×4.2 (H×V×D)
Display Area 367.2× 229.5 (H×V)
Brightness 250 cd/m² (Typ.
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 6-bit) , 40 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list:
1× HDMI Type C Audio LCD Controller Board
1× 17inch LTN170TC10/LP171WU6 1920X1200 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
HDMI TYPE-C LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
USB Port: Used For Keyboard And Touch Panel Controller Card
Video Input: HDMI TYPE-C
Audio Input: HDMI TYPE-C
Audio Output: Earphone Speaker (4Pin PH2.0 connector)
Reversing: Support. It Automatically Switch To AV When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 101mm x 66mm x 12mm
Note: Please use Date Type-C Cable. It maybe can't work if you cable is power type-c cable.
The Type-C connector only support one side. If not work. Please Insert by turning 180 degrees.
17" 1920X1200 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920RGB)×1200
Outline Size 383.97 × 256.35×4.2 (H×V×D)
Display Area 367.2× 229.5 (H×V)
Brightness 250 cd/m² (Typ.
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 6-bit) , 40 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list:
1× HDMI Type C Audio LCD Controller Board
1× 17inch LTN170TC10/LP171WU6 1920X1200 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)

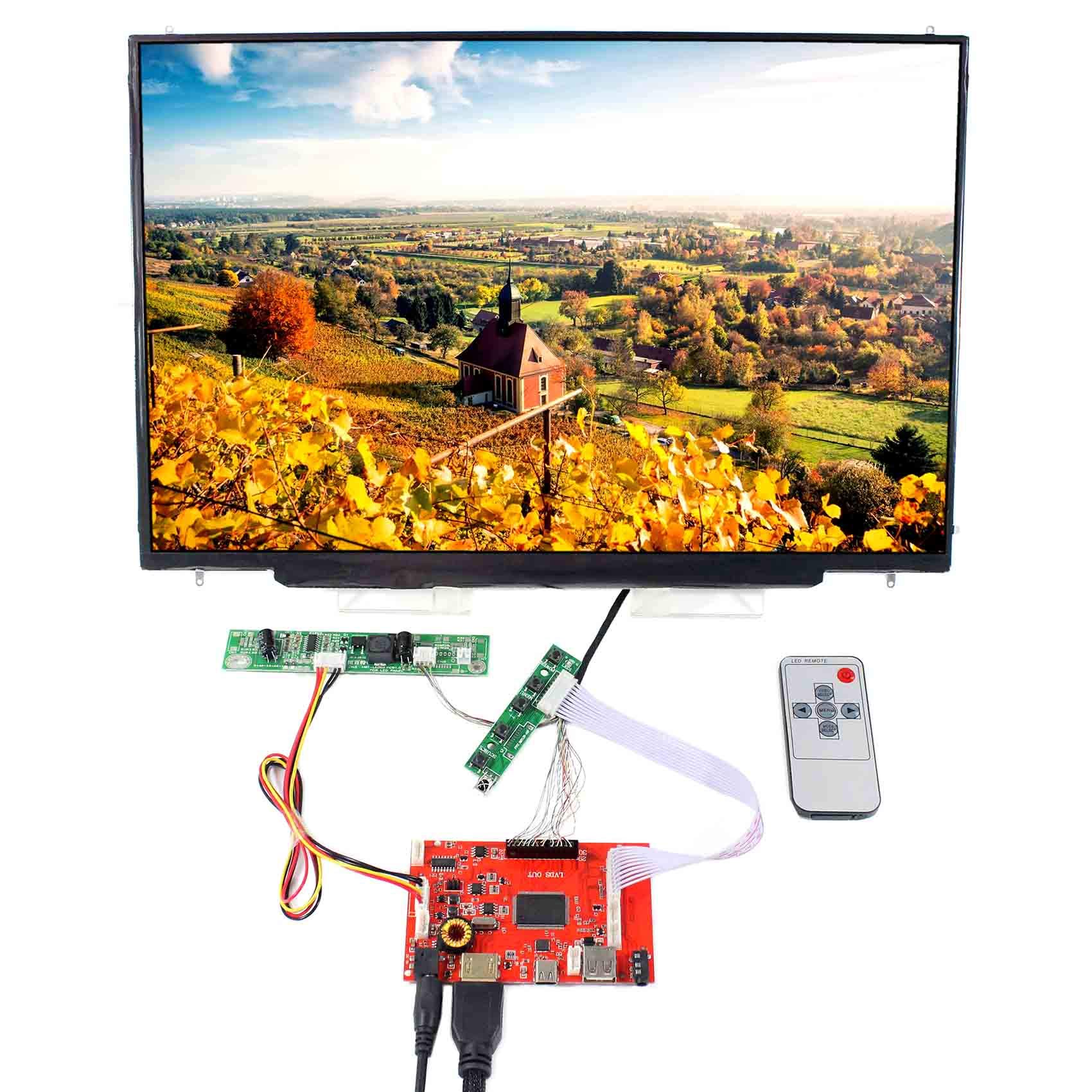

VSDISPLAY 17 inch 1920X1200 LCD Screen 17" LTN170TC10/LP171WU6+HDMI Type C Audio LCD Driver Board Controller Kit
