Description
LCD Controller Board:
HDMI USB Android LCD Controller Board Work for LVDS 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI1.4 USB
USB Port: Support Video Play Support WIFI Module Support Connect Keyboard and mouse Support 5Vdc 500mA output Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm
9.1" LQ091B1LW01 820X260 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 822RGB)×260
Outline Size 240× 86×10.5(H×V×D)
Display Area 219.5× 69.4 (H×V)
Brightness 380 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

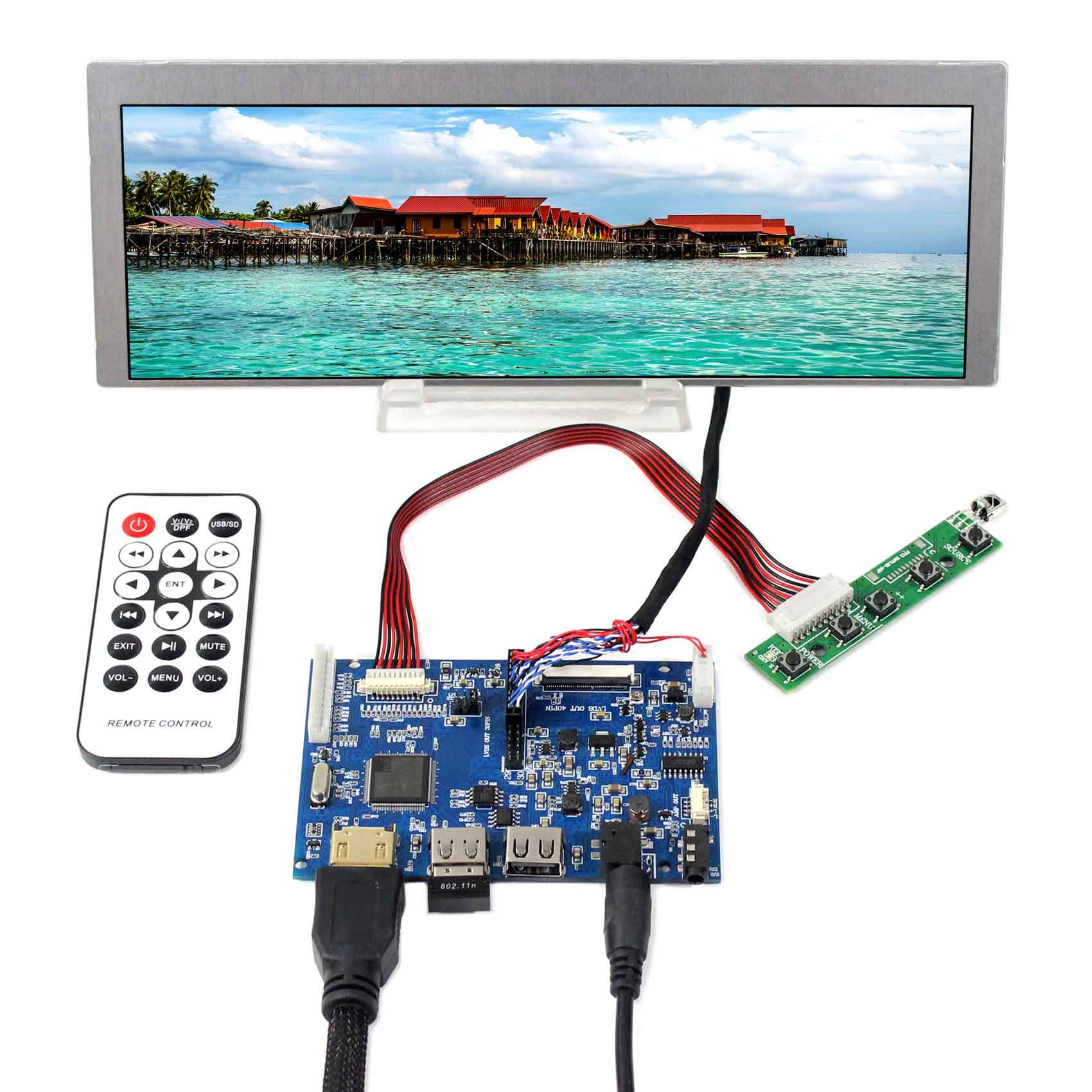

Packing list :
1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
PS: The menu can't use because of this lcd screen is too small.Only ON/OFF and Source change can use.
1× 9.1inch LQ091B1LW01 820X260 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
