Description
Placing the protection circuit with the battery core at the anode (positive terminal), combined with the steel outer shell, UB-123A effectively prevents the danger from impact, such as short circuiting, without increasing the diameter of the battery .There are four protection circuits for: Overheating, Over-charging, Over-discharging, and Short-circuit protection! Anode protection circuit includes the Micro-USB charging port, enabling direct charging using USB cables connected to a 5V adapter, a PC USB port, or any portable power banks. UB-123A can also be charged from a compatible lithium battery charger. While it is being charged, the indicator lamps on the battery will display the charging status. The anode (positive terminal) of the battery features a protruding cap for improved connection to springs or other PCB surfaces. This improves functionality when the battery is used in series during application. UB-123A also has an improved exterior wrap to protect the battery from damage and retains the rugged dependability of Weltool!
Specs:
Model: UB-123A
Core's Capacity: (typ.) 750mAh
Resistance: ≤85mΩ
Output Voltage: 3.0V
Continuous Discharging:1.4A(MAX)
Charge:0.33A (Micro-USB port charging), 1A>0.5A(Battery Charger)
Charging Protection:4.3±0.05V
Discharge Protection:2.5±0.1V
Usage:More than 300 charging cycles, the battery still has 80% capacity.
Size:16.6±0.2mm (Dia.) , 34.9±0.1mm(Length)
Weight:18.5g
Specs:
Model: UB-123A
Core's Capacity: (typ.) 750mAh
Resistance: ≤85mΩ
Output Voltage: 3.0V
Continuous Discharging:1.4A(MAX)
Charge:0.33A (Micro-USB port charging), 1A>0.5A(Battery Charger)
Charging Protection:4.3±0.05V
Discharge Protection:2.5±0.1V
Usage:More than 300 charging cycles, the battery still has 80% capacity.
Size:16.6±0.2mm (Dia.) , 34.9±0.1mm(Length)
Weight:18.5g

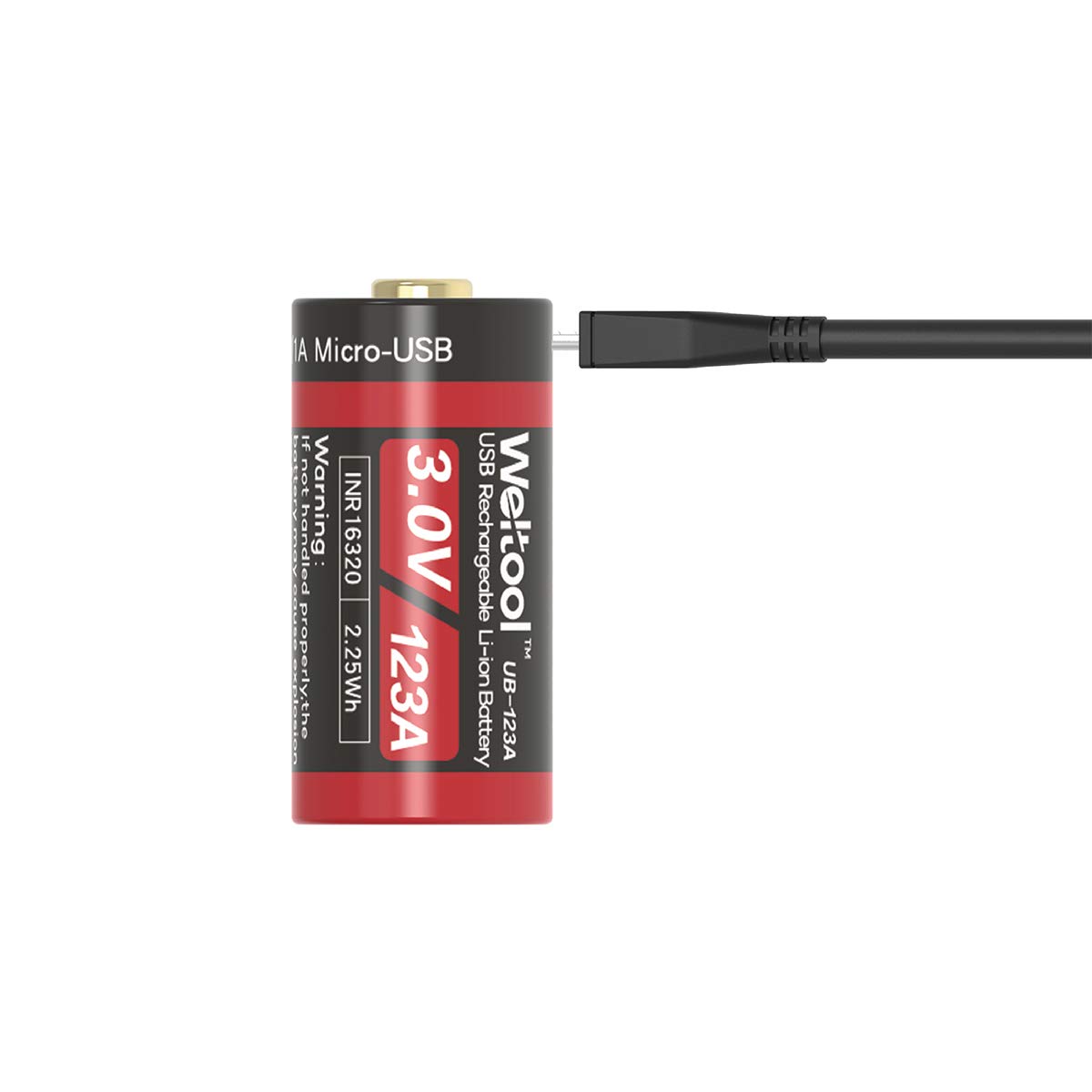

Weltool UB-123A 3.0V Rechargeable Battery Build-in USB Port 750mAh Battery Replacement for CR123A Battery for Cameras, Photo Equipment, LED flashlights, Light Meters
