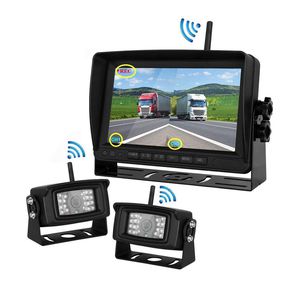

7" digital high-brightness TFT LCD Monitor
- Display function: one image or split two images display
- Storage function: Built-in storage function Maximum expansion 32G memory card(SD card not included)
- DVR: with video recording function to achieve simultaneous recording function
- detachable bracket and sun visor)
- 2.4GHz digital wireless receiver with multiple channels
- Operating frequency range: 2370-2510MHZ
- Receiving sensitivity: ≤-86dBm
- Code saving when power off, no need to manually pair code when powered on again
- Color format: PAL / NTSC
- Display resolution: 800RGB (H) × 480 (V)
- Brightness: 500 (cd/m2)
- Wide viewing angle (CR>10): (up/down): 45/65 (left/right): 65/65
- Contrast: 500:1
- Working temperature: -20 ° C to +70 ° C
- Storage temperature: -30 ° C to +80 ° C
- Working voltage: DC9-35V
Digital wireless infrared waterproof camera
- Imaging chip type: 1/3 inch color CMOS
- Built-in 2.4GHz digital signal wireless transmitter
- Transmitting power: 18dBm
- Effective Pixel: N/P System Automatic Adaptation
- NTSC: 960(H)X480(V); PAL:960(H)X480(V)
- Available low illumination: 1Lux
- IR LED: 24pcs
- Waterproof rating: IP68
- Anti-vibration level: 10G
- Working voltage: DC12V-24V wide voltage
- Operating frequency range: 2370-2510MHZ
The monitor and cameras will pair automatically after power off and restart. No need to pair manually each time. If the monitor displays "no signal", please manually pair the monitor and the camera.
Pair CH1: Press "CH-" on the monitor, the monitor displays CH1, press "Menu"- "SEL", and then press the pairing button on the camera, they will pair successfully.
Pair CH2: Press "CH-" twice on the monitor, the monitor displays CH2, Repeat the previous steps
