Description
WINGONEER trademark Reg.NO:4747611

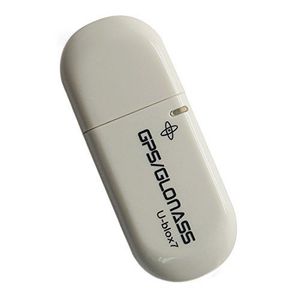

WINGONEER GPS Smart Antenna VK-172 NEW USB GPS Receiver Ublox7 for PC laptop Windows AU
Description:
GPS Smart Antenna VK-172 NEW USB GPS Receiver Ublox7 for PC laptop Windows AU
Support NMEA 0183 and ublox binary protocol
Support Windows XP / Vista / 7 / 8 / CE
Chip:U-Blox (G-7020)
C / A code, 1.023 yards stream
Receive frequency: L1 [1575.42MHz]
Receive Channel: 56CH
Support DGPS [WAAS,EGNOS & MSAS]
Positioning performance
Less than 2.5m [Autonomous][50%]
Rate : Less than 0.02m/s
Direction: Less than 0.5 Degrees
Timing accuracy:1us
Reference coordinate system:WGS-84
Max Altitude:18000 m
Max Speed :500 m/s
Acceleration: Less than 4g
Electrical properties
Other parameters
Tracking sensitivity: -162 dBm
Standard clock pulse : 0.25Hz ~1 KHz
Acquisition Sensitivity: -160dBm
Positioning update rate :1Hz ~ 5Hz (Default 1Hz)
Acquisition time (average)
USB port interface
Cold Start: 29seconds
Data Rate: 9600bps
Warm Start: 28seconds
Operating temperature : -30 Celsius ~ +85 Celsius
Hot Start: 1 seconds
AGPS :3 seconds
Usage:
Download the driver ,Connect the VK16U6 to your equipment
Put VK16U6 in a appropriate place to receive the best GPS satellite signal.
Open the navigation software,set the COM port and baud rate for the receiver;
VK16U6 will start to provide you GPS satellite positioning function.
Package Included:
1x USB GPS Receiver
