Display Screen: TFT-LCD
Display size : 4.3 Inch
Systme: PAL and NTSC system (auto switch)
Display Format : 4:3
Power: < / = 3W
Power supply: DC 12V-24V
Video: 2 AV input auto switching
Contrast: 350 : 1
Screen Pixels: 480(W)x 234(H)
Environment Humidity: 10% ~ 90%
Operating Voltage: DC 12V-24V
Operating temperature: -20 ~ 60 degree Celsius
Storage temperature: -40 ~ 85 degree Celsius
Installation: clip with the original rear view Mirror, Easy for installation
Car Make: All 12V-24V Car
Backup camera
Image chip: HD 7070 mirror image with grid lines
Format: standard NTSC, PAL for the election
Effective pixels: PAL: 628 (H) x582 (V) NTSC: 510 (H) x 492 (V)
Resolution: 480 TV lines
Minimum illumination: 0.5Lux
Lens: 1.8mm
Visual Angle: 135 degrees
Diagonal Visual Angle: 90 degrees (Vertical visual angle)
SNR: 48dB or greater
Video Output: Composite video (1.0Vpp, 75ohm, RCA)
Current consumption: 90mA (about 130ma after IR on)
Power supply: 12V (Do not use 24V power)
Operating ambient temperature:-20 to + 60 °C,
Waterproof grade: IP68
Image Flip: left mirror phase
Size: suitable for almost all of the license plate
Receiver and Sender:
Wireless transmission of video signal, no cabling hassle Connects to rear-view
camera and front video screen
Take some minutes get your camera become a wireless camera Video signal
transmission via 2.4 GHz radio signal Range: Barrier:10M
Input voltage: 12V-24V DC

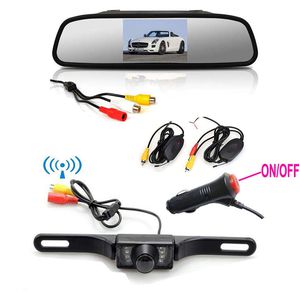

Package include:
1 x License Number Plate Backup Camera
1 x 4.3 inch Mirror Monitor
1 x Video Signal Receiver (Need to connect with the monitor,Led Showing with red light)
1 x Video Signal Transmitter (Need to connect with the camera,Led Showing with blue light)
1 x DC Cable
1 x Car Cigarette Lighter Charger
Wireless Vehicle Backup Camera Monitor Kit 7 IR LED Night Vision Waterproof Car Rear View License Plate Camera with 4.3 inch LCD Mirror Monitor Parking Assistance System 12V/24V
Display Screen: TFT-LCD
Display size : 4.3 Inch
Systme: PAL and NTSC system (auto switch)
Display Format : 4:3
Power: < / = 3W
Power supply: DC 12V-24V
Video: 2 AV input auto switching
Contrast: 350 : 1
Screen Pixels: 480(W)x 234(H)
Environment Humidity: 10% ~ 90%
Operating Voltage: DC 12V-24V
Operating temperature: -20 ~ 60 degree Celsius
Storage temperature: -40 ~ 85 degree Celsius
Installation: clip with the original rear view Mirror, Easy for installation
Car Make: All 12V-24V Car
Backup camera
Image chip: HD 7070 mirror image with grid lines
Format: standard NTSC, PAL for the election
Effective pixels: PAL: 628 (H) x582 (V) NTSC: 510 (H) x 492 (V)
Resolution: 480 TV lines
Minimum illumination: 0.5Lux
Lens: 1.8mm
Visual Angle: 135 degrees
Diagonal Visual Angle: 90 degrees (Vertical visual angle)
SNR: 48dB or greater
Video Output: Composite video (1.0Vpp, 75ohm, RCA)
Current consumption: 90mA (about 130ma after IR on)
Power supply: 12V (Do not use 24V power)
Operating ambient temperature:-20 to + 60 °C,
Waterproof grade: IP68
Image Flip: left mirror phase
Size: suitable for almost all of the license plate
Receiver and Sender:
Wireless transmission of video signal, no cabling hassle Connects to rear-view
camera and front video screen
Take some minutes get your camera become a wireless camera Video signal
transmission via 2.4 GHz radio signal Range: Barrier:10M
Input voltage: 12V-24V DC
Package include:
1 x License Number Plate Backup Camera
1 x 4.3 inch Mirror Monitor
1 x Video Signal Receiver (Need to connect with the monitor,Led Showing with red light)
1 x Video Signal Transmitter (Need to connect with the camera,Led Showing with blue light)
1 x DC Cable
1 x Car Cigarette Lighter Charger
