Description
Feartures:
With MIC
5V output for camera
2S-6S input power supported
LC filter allows ultra clean fpv video
0.01/25/200/500/1000mW Switchable VTX with pigtail antenna
Integrated with Uart, connectable to betaflight FC (Support FC like Wolfwhoop OmnibusF4/OmnibusF4 Pro)
0.01mW-Power up and test your system during a race with zero interference
Support parameter remotely adjusted by Betaflight, flight controller, OSD 5V BEC output, support power for receiver and camera
LED display for indicating CH/Band/Power
Specifications:
Operating Voltage: 7 - 26V
Power supply: 5V camera@under 0.5A max
Output power:25mw/200mw/500mw/1000mw
Range: Up to 6-8km with omnidirectional RHCP antennas
Antenna type: pigtail antenna Antenna connector: MMCX to RP SMA Female
Video Format: NTSC/PAL
Port connector: JST,6pin
Dimensions: 31(H)x22(W)mm
Weight:6.8g(Excluding antenna)
Note :
5645/5925/5945(E4/E7/E8) are not available sue to FCC regulation. Selecting 5645/5925/5945(E4/E7/E8) will be invalid action.
37 channels are all above 5650 and below 5925MHz, which are legal to use in the USA with an amateur radio license.
This equipment is being sold under FCC's amateur radio rules. Operators must require amateur radio license to operator legally in the US. Use of amateur equipment without a license or use of equipment on restricted frequencies could subject the operator to significant fines by the FCC. By purchasing this equipment, the user is agreeing that they understand these responsibilities and will operate the equipment legally. More information related to ARL, please go to http://www.arrl.org/getting-licensed.

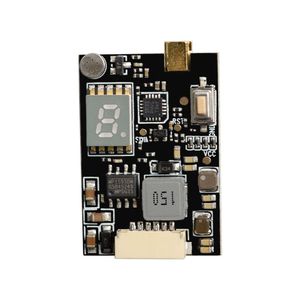

Wolfwhoop Q1-Upgrade 5.8GHz 0.01/25/200/500/1000mW Switchable FPV Transmitter with MMCX and FC Uart Support Telemetry via Betaflight Flight Controller -Long Range Version
Price is below average
Current Price
$18.99
Average
$22.24
Min Price
$18.99
Max Price
$24.99
Price dynamics
15%
Description
Feartures:
With MIC
5V output for camera
2S-6S input power supported
LC filter allows ultra clean fpv video
0.01/25/200/500/1000mW Switchable VTX with pigtail antenna
Integrated with Uart, connectable to betaflight FC (Support FC like Wolfwhoop OmnibusF4/OmnibusF4 Pro)
0.01mW-Power up and test your system during a race with zero interference
Support parameter remotely adjusted by Betaflight, flight controller, OSD 5V BEC output, support power for receiver and camera
LED display for indicating CH/Band/Power
Specifications:
Operating Voltage: 7 - 26V
Power supply: 5V camera@under 0.5A max
Output power:25mw/200mw/500mw/1000mw
Range: Up to 6-8km with omnidirectional RHCP antennas
Antenna type: pigtail antenna Antenna connector: MMCX to RP SMA Female
Video Format: NTSC/PAL
Port connector: JST,6pin
Dimensions: 31(H)x22(W)mm
Weight:6.8g(Excluding antenna)
Note :
5645/5925/5945(E4/E7/E8) are not available sue to FCC regulation. Selecting 5645/5925/5945(E4/E7/E8) will be invalid action.
37 channels are all above 5650 and below 5925MHz, which are legal to use in the USA with an amateur radio license.
This equipment is being sold under FCC's amateur radio rules. Operators must require amateur radio license to operator legally in the US. Use of amateur equipment without a license or use of equipment on restricted frequencies could subject the operator to significant fines by the FCC. By purchasing this equipment, the user is agreeing that they understand these responsibilities and will operate the equipment legally. More information related to ARL, please go to http://www.arrl.org/getting-licensed.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
