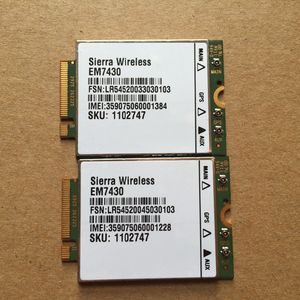

AirPrime EM7430 Specifications

Cellular:
FDD/TDD LTE (Cat 6)
1,3,5,7,8,18,19,21,28,38,39,40,41
Carrier Aggregation
1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39, 40+40, 41+41
DC-HSPA+ (42/5.76 Mbps)
1,5,6,8,9,19 TD-SCDMA 39

Physical Characteristics:
M.2 42 X 30 X 2.3 [mm] Type 3042
USB 3.0 & USB 2.0
GPIOs for antenna tuning and SAR control
PCM/I2S interface for voice (Future FW update)

Temperature ranges:
-30C to +70C (operating class A)
Storage Temperature: -40C to +85C

Key Features:
Qualcomm MDM9230 chipset
Single SKU for APAC
GNSS
Dedicated GPS connector with GPS bias or shared on diversity (TBD)
GPS, Glonass, Galileo ,BeiDou
SUPL 1.0, 2.0, XTRA2.0
Optional support for VoLTE and CSFB voice through future FW update
Low power consumption
Envelope tracking
Software
Gobi API, Image switching, MBIM interface
Basic and Extended AT Commands
Skylight for Windows 7, 8/8.1, 10
Linux and Android

Approval & Certification:
JRF/JPA, NCC
docomo, Telstra, Others TBD

Packaging&Shipping:
original packaging
100pcs/box
Shipping:Our lead time is roughly 2-7 days after receipt of the full payment .Products can be shipped by Door-to-Door Express (UPS,DHL,EMS,FedEx ,TNT and so on).
If you need,contact us anytime
