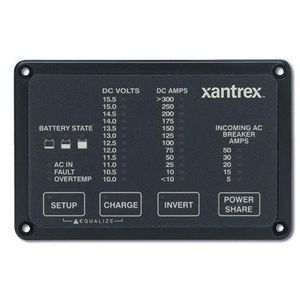

Xantrex Heart FDM-12-25 Remote Panel Battery Status & Freedom Inverter/Charger Remote Control

the freedom x remote panel used to control the freedom x inverter and freedom xc inverted charger to use the panel press the power button after a brief delay the display will turn on the load is indicated by the light bulb icon and the battery is indicated by the battery icon the diagram has arrows that show the current flow from the battery to the load you can view the different meters by pressing the scroll button when inverting the main screen shows the battery voltage and load wattage the next screen shows the load side ac voltage and frequency the next screen is the inverter firmware revision the last screen is the remote firmware revision when plugged into shore power or generator you will see the flashing ac icon indicating ac power is present and the unit is qualifying ac when the ac input has been qualified you can see the current flow coming from the ac through the transfer sw
