Description

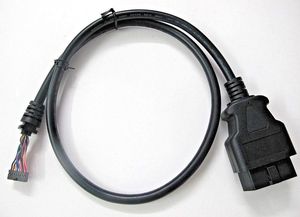

This is a Generic / Aftermarket Heavy Duty OBDII 16-pin cable with no markings or part numbers. Refer to main photo to see what is included. Please make sure you have a known good OBDII Smart Box to start with. This cable will only replace torn or damaged OBD2 port connector cable; you will use your same Smart Box 3421-88. INSTALLATION INSTRUCTIONS: (1) Remove expansion port from Smart Cable Box (very important or else you will damage) (2) Remove 4 Philips screws on the back (3) Remove bottom cover and take green PCB board out; handle PCB by its edges try not to touch small components (4) Remove old OBDII cable from green board (Just pull, if it's hard just move slightly side to side to loosen as you pull up). Please note the small tab key in the middle of the connector will go into the cutout on the socket where it plugs in. This will allow you to insert the connector in the proper direction. (5) Insert new cable in (maybe hard at first to plug in because of new pins). (6) Handle cable connectors carefully NEVER push or pull on small wires; always use the connector itself when inserting or removing the cable from PCB (7) Insert cable relief rubber connectors inside case cutout box inserts, and then slowly push PCB board in. (8) Insert bottom cover, make sure all 4 screw holes align in order for cover to close properly (9) Insert screws and tighten as necessary; Insert Expansion Port (10) YOU ARE DONE!!

Xpertx Solutions Replacement OBDII Cable OTC 3421-88 Smart Cable Genisys EVO Matco Determinator Mac Tools Aftermarket

Price is below average

Get price

Current Price

$32

Average

$37.5

Min Price

$32

Max Price

$45

Price dynamics

15%

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

what up guys should be the tool attic here got another video here Diagnostics we're going to talk about the Mac MDT 10 this is a awesome scan tool guys I'm going to tell you about a couple features that I like about this first just out appearance here we're going to talk about the the first things which I like are the outer molding or the case of this thing nice and thick very durable very solid scan tool the glass has a nice nice anti glare really holds up getting sunlight you can see we're in a pretty well lit shop here and there's not a ton of kickback on it with it dark and then the fact is the power button is up here on the top side right here which I'm going to tell you right now that is a that is the biggest thing that I like about this versus its sister scam tools the boss 625 80s and the OTC evolved so we're gonna kick this off now I don't have this hooked up to a car and while
