Description

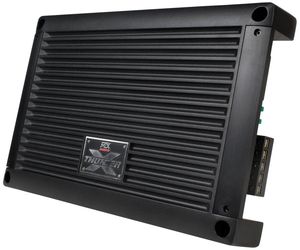

XTHUNDER800.5 800W RMS 5-Channel Full Range Class D Amplifier by MTX Audio

Extreme Sub Power

These amplifiers are designed to deliver extreme power to the most demanding systems whether they be subwoofers or full range speakers.

5-channel amplifier full range class D amplifier topology to ensure excellent thermal management under the harshest conditions for a full audio system. Capable of delivering 400W RMS power into a 2Ω subwoofer load and 125W RMS power into each of the four full range channels at 2Ω,

XThunder 800 Key Features:

Full Range Class D Topology
Variable High and Low Pass Filters
Cast Aluminum Top Cover
Subsonic Filter and Bass Boost

Built To Drive Four Speakers And A Sub

The unit features a dual sided circuit board wiith increased copper traces that maximize electrical transfer and minimize power lost before it gets to your speakers.

Features

Full Range Class D Design Offers Excellent Efficiency for Both Subwoofers and Full Range Speakers

Low Profile Design Allows for Installation Anywhere

Cast Aluminum Top Cover Efficiently Dissipates Heat

Variable Butterworth Crossover 12dB/Oct

Tech Specs

4 Ohm RMS Power Output 75 x 4 (HF) + 300 x 1 (LF)

Signal to Noise Ratio >70dB

2 Ohm RMS Power Output 125 x 4 (HF) + 400 x 1 (LF)

THD <0.2%

Frequency Response 10Hz - 20kHz F/R + 10Hz - 250Hz Sub

Maximum Input Signal 5V

Max Sensitivity 100mV

Low Pass Filter Variable, 40Hz - 250Hz, 12dB/Oct (Sub)

High Pass Filter Variable, 40Hz - 250Hz, 12dB/Oct (F/R)

Subsonic Filter Fixed, 27Hz, 12dB

Bass Boost 12dB @ 45Hz

Topology Full Range Class D

Depth 8.9" (226.7mm)

Length 14.2" (359.9mm)

Height 2.03" (51.5mm)
