Description

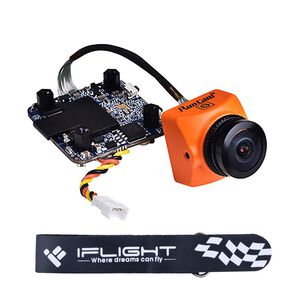

RunCam Split 3 Micro FPV Camera
If you have jello issue with this RunCam Split camera, please try these solution first.
1.try a camera lens on it
2.make sure camera mount is fixed
3.make sure the motor is good rotating
4.make sure prop is balanced
5.make sure your frame bolts are tight
Specification
Upgraded RunCam Split 3 Micro has stronger flexible ribbon cable, optimize TV-OUT interference to reduce ripple
Remove the usb port, replace the seat by 1.0mm and support the soldering pad
Connect the Split 3 series with the UART (RX & TX)interface of the Flight Controller
Field of View(FOV): Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
Video Resolution: 1080@60fps/1080@50fps/1080@30fps/720@60fps
Video File Format: MOV
Image Resolution: 2 MP
TV Mode: NTSC (720*480)/PAL (720*576) Switchable
Interface: JST 1.25mm / UART
Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
Hole Distance of Installation: 20*20mm
Dimension: PCB 29*29mm / Lens Module 19*19mm
Lens Specs: M12
Power Input: DC 5-20V
(Non-direct power supply from battery. Powered direcly with battery will generate surges and burn the camera.)
Working Current: 650mA @5V / 270mA @12V
Weight: 14g
Package Included
1 x RunCam Split 3 Micro FPV Camera
1 x iFlight 20x200mm Battery Strap Black
Please download the manual from Runcam official website.
