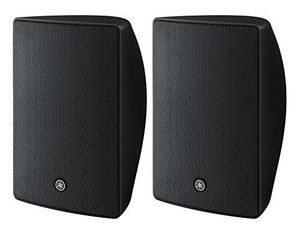

Yamaha VXS5 VXS Series 5.25 Inch Surface Mount Speaker - Black Pair

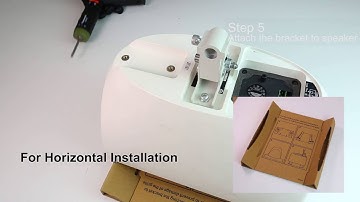

Here we'd like to explain how to safely and quickly install the VXS5 and VXS8 surface mount speakers, using the VXS5 as an example. You'll need the tools shown here in order to perform the installation. Now, let's mount the VXS5 to the wall. Firstly, install the bracket base to the wall. Attach the cover to the bracket base. Install the speaker cable to the Euroblock connector. There are two methods you can use when connecting multiple speakers, loop through terminals or paralleling input terminals. You can switch between high-impedance and low-impedance connections with the tap switch on the back of the VXS5. Next, attach the mounting bracket to the VXS speaker unit. The VXS5 can be installed either vertically or horizontally. You can use the cardboard that comes with the speakers as a stand to prevent damaging the grille when attaching the bracket. Mount the speaker to the bracket bas
