Description:

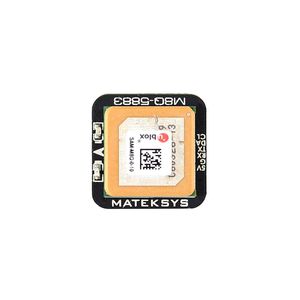

Item name: GPS & compass module M8Q-5883

Brand name: Matek
Dimensions: L20 x W20 x H10 mm
Weight: 7 gram
Input voltage range: 4~6V
Uart (Tx,Rx) interface for GPS SAM-M8Q
I2C (DA,CL) interface for Compass QMC5883L
Battery for HOT module start
Power LED(Red)&Time pulse LED(Blue)
Supported by INAV/Betaflight/Ardupilot, ect.

-Max navigation update rate

Single GNSS up to 18 Hz

2 Concurrent GNSS(GPS &GLONASS) up to 10 Hz

-Horizontal position accuracy(GPS &GLONASS) 2.5 m CEP

-Velocity accuracy 0.05m/s

-Cold start 26 s

Aided cold starts: 2 s

Hot start 1 s

-Sensitivity

Tracking & Navigation: -165 dBm

Reacquisition: -158 dBm

Cold start: -146 dBm

Hot start: -155 dBm

Package Included:

1x M8Q-5883 module

1x SH1.0-6P 20cm silicon wire

1x Transparent PVC Heat-shrink tube
