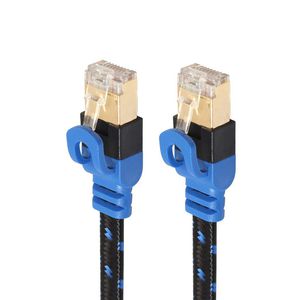

Product Name: With fiber network double shielding seven types of 10G computer router NAS flat network cable

Interface type: RJ45*2

Product color: blue black

Packing: Pearlized bag packaging

Product material: shielded gold-plated plug, fiber woven mesh cover, PVC quilt. The wire conductor is 32 AWG oxygen free copper.

Product introduction:

The Category 7 cable is an 8-core shielded cable with a shield (usually Foil Shield) and a shield (usually a Braided Shield). The interface is the same as the current RJ-45. Total shielding (generally metal woven mesh screen shielding) + wire pair shielding (generally metal foil shielding) Category 7 S/FTP Cat.7 (HSYVP-7) Maximum transmission frequency 600MHz, Super Category 7 transmission frequency is 1000MHz .

There are many significant differences between Category 6 and Category 7 cabling systems, the most obvious being bandwidth. The six types of channels provide a combined attenuation-to-crosstalk ratio of at least 200 MHz and an overall bandwidth of 250 MHz. Seven-class systems can provide a combined attenuation-to-crosstalk ratio of at least 500 MHz and an overall bandwidth of 600 MHz.

A large number of broadband applications are driving people to need more bandwidth. For example, a typical seven-category channel can provide a bandwidth of 862 MHz for a pair of lines to transmit video signals, analog audio signals for another pair, and then transmit high-speed LAN information for the third and fourth pairs.

Another difference between the six and seven systems is their structure. Category 6 cabling systems can use either UTP or STP. The seven types of systems are based only on shielded cables. In the seven types of cables, each pair has a shield, and the four pairs of wires together have a common large shield. From the physical structure point of view, the extra shielding layer makes the seven types of lines have a larger wire diameter.

Another important differenc
