Description

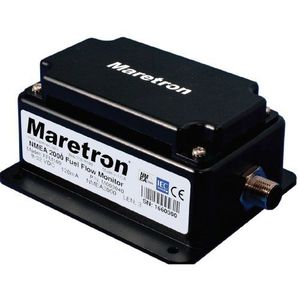

Fuel Flow Monitor
Part #: FFM100-01

Maretron's FFM100 provides precision fuel flow information to help optimize fuel consumption, which can save thousands of dollars in fuel operating cost. The FFM100 uses state-of-the-art, positive displacement metering technology for unprecedented accuracy. In fact, the accuracy of the FFM100 is nearly that of commercial vessel systems costing tens of thousands of dollars, yet the FFM100 cost less than existing recreational systems found on the market today. Additional benefits of the positive displacement metering technology are the elimination of flow conditioning components such as straighteners and pulsation dampers. Other flow meter technologies require flow conditioning components that increase system and installation cost. The FFM100 also uses true temperature compensation with embedded temperature sensors within the meters. The returning fuel is generally hotter than the supply fuel and if not properly compensated, inaccuracies as much as 5% can occur in computing the engine's fuel consumption. The FFM100 also detects momentary reverse flow in the fuel lines due to fluctuating pressure caused by the injection pump. Less accurate systems count the reverse fuel flow as part of the consumed fuel where the FFM100 properly accounts for momentary reverse flow.
Lastly, the FFM100 can be used for fluid types other than fuel (e.g., water, oil, etc.) by ordering the appropriate flow sender.

The FPM100 is NMEA 2000® certified so you can view any and all information anywhere on the vessel using a compatible NMEA 2000® display. The FFM100 is a key component of Maretron's N2KView® vessel monitoring and control system.

Features:

FFM100 converts a variety of flow senders (e.g., fuel, water, etc.) to NMEA 2000® Network Data

MARETRON FFM100-01 / Maretron FFM100 Fuel Flow Monitor

Price is below average

Get price

Current Price

$383.72

Average

$384.62

Min Price

$326.9

Max Price

$651.9

Price dynamics

Description

FFM100 converts a variety of flow senders (e.g., fuel, water, etc.) to NMEA 2000® Network Data

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

hi there charlie don't sale magazine I'm here to tell you about this sexy little black box the merit Ron FFM 100 this is a fluid flow monitor you can use to monitor water flow fuel flow fuel is where it's going to be most useful obviously waste whatever this is the winner one of the winners in our systems category in the 2012 Freeman K Pittman Innovation Awards what it is really is a hyper accurate fluid monitor and this this black box here converts data from this sensor into enemy a 2000 data that you can process in all kinds of wonderful ways what's cool about the sensor is that in addition to measuring the volume of fluid flowing to it it measures temperature so it can use those temperature readings to give to take into account the variation in volume of the fuel so you have cool fuel flowing to the engine you have hot fuel coming back on the return line you need to know the temperat
