Innovating productivity with an all-new passive cooling chassis design inspired by the honeycomb, one of nature's most recognized and strongest structures, CI640 nano is the first Mini PC to be equipped with an 8th Gen Intel Core processor, and can handle up to a 25W TDP processor and delivers the most powerful performance from a ZBOX C Series Mini PC in complete silence.
FEATURES
- Passive cooling
- Intel Clear Video HD technology
- Intel Quick Sync Video technology
- Native 4K output (H.265, H.264 decode)
- Microsoft DirectX 12 compatible
- 802.11ac WiFi & Bluetooth 4.2
- HDCP compliant

SPECIFICATIONS
- Intel UHD Graphics 620
- Intel Core i5-8250U processor (quad core 1.6GHz, up to 3.4GHz)

AUDIO OUTPUTS
- Digital 8 Channel Loss-less Bitstream (via HDMI)
- Analog Stereo In / Out

HARD DRIVE & MEMORY
- 120GB 2.5-inch SATA SSD
- 4GB DDR4 SO-DIMM (up to 32GB)

REAR PORTS
- Wi-Fi antenna connector
- 4 x USB 3.0
- 2 X 10/100/1000 Ethernet
- Power connector

DISPLAY OUTPUTS
- HDMI 2.0 (3840x2160 @ 60Hz), HDCP compliant
- DisplayPort 1.2 (4096x2160 @ 60Hz)

SOFTWARE COMPATIBILITY
- Microsoft Windows 10 64-bit

FRONT PORTS
- Power Button
- 3-in-1 card reader (SD/SDHC/SDXC)
- 2 x USB 3.1 Type-C, 1 x USB 3.0
- WiFi LED
- Hard drive LED
- Power LED

INSIDE THE BOX

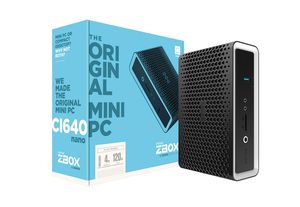

- ZOTAC ZBOX CI640 nano PLUS
- AC adapter
- Power cord (bundled cable type dependent on region)
- VESA mount (w/4 screws)
- Wi-Fi antenna
- Driver disc
- User manual
- Quick guide

MINI PC DIMENSIONS
- Length: 204mm (8.03in)
- Width: 129mm (5.08in)
- Height: 68mm (2.68in)

BOX DIMENSIONS
- Length: 235mm (9.25in)
- Width: 235mm (9.25in)
- Height: 88mm (3.46in)
