Raise productivity to a whole new level with the first ZBOX Mini PC harnessing the latest 8^th Generation Intel Core i7 quad-core processor. The Mini PC can handle compiling complicated codes while maintaining native 4K output. Equipped with a vast array of connectivity including USB 3.1 type-C, HDMI and DisplayPort, the door opens to many more opportunities. Whether it is home, office or even at the lab, this Mini PC is the perfect suit.

FEATURES

• Intel Clear Video HD technology
• Native 4K output
• Microsoft DirectX 12 compatible
• 802.11ac Wi-Fi & Bluetooth 4.2

SPECIFICATIONS

• Intel UHD Graphics 620
• Intel Core i7-8550U (quad-core 1.80 GHz, up to 4.00 GHz)

AUDIO OUTPUTS

• Digital 8 Channel Loss-less Bitstream (via HDMI)
• Analog Stereo In / Out

SOFTWARE COMPATIBILITY

• Microsoft Windows 10 64-bit

HARD DRIVE & MEMORY

• 1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay
• 2 x 260-pin DDR4-2133/2400 SODIMM Slot(up to 32GB)

REAR PORTS

• Wi-Fi antenna connector
• 4 x USB 3.0
• 2 X 10/100/1000 Ethernet (RJ45)
• Power connector

INSIDE THE BOX

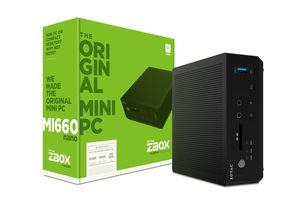

• ZOTAC ZBOX MI660 nano
• Power adapter and cable(bundled cable type dependent on region)
• Wi-Fi dual-band antenna
• VESA mount (w/ 4 screws)
• USB Flash Drive with OS drivers
• Support DVD
• User Manual and Quick Install Guide

FRONT PORTS

• Power Button
• 3-in-1 card reader (SD/SDHC/SDXC)
• 2 x USB 3.1 Type-C, 1 x USB 3.0
• WiFi LED
• Hard drive LED
• Power LED

DISPLAY OUTPUTS

• HDMI 2.0 (3840x2160 @ 60Hz), HDCP compliant
• DisplayPort 1.2 (4096x2160 @ 60Hz)

MINI PC
