Description

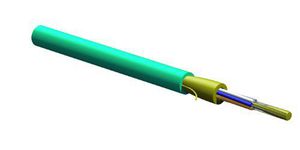

PRICE IS PER 10 FEET Corning MIC Tight-Buffered Cable, Plenum, 6 F, 50 μm Multimode (OM3), Aqua Outer Jacket Corning Cable Systems MIC Plenum Cables are designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations. These multi-fiber cables use 900 μm TBII Buffered Fibers to allow easy, consistent stripping and to facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flameretardant outer jacket. The all-dielectric cable construction requires no grounding or bonding. For additional mechanical durability, an interlocking armored option is available. Ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations, these cables are available in 50 μm, 62.5 μm, single-mode and hybrid versions. The MIC Plenum Cables meet the application requirements of the National Electrical Code (NEC Article 770) and are OFNP and FT-6 listed. They are also offered with Gigabit Ethernet and 10 Gigabit Ethernet performance. Outside Diameter: 5.3 mm (0.21 in.) Maximum Tensile Loads: N (lbf) Short-Term: 440 (100) Long-Term: 132 (30) Minimum Bend Radius: cm (in.) Loaded: 8.0 (3.2) Installed: 2.7 (1.1) Temperatures: Storage: -40° to +70°C (-40° to +158°F) Installation: 0° to +60°C (+32° to +140°F) Operation: 0° to +70°C (+32° to +158°F)
006T88-31180-29 - Corning 6-Fiber MIC Plenum Cable, 50 um
Current Price
$12.5
Average
$12.5
Min Price
$12.5
Max Price
$12.5
Description
PRICE IS PER 10 FEET Corning MIC Tight-Buffered Cable, Plenum, 6 F, 50 μm Multimode (OM3), Aqua Outer Jacket Corning Cable Systems MIC Plenum Cables are designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations. These multi-fiber cables use 900 μm TBII Buffered Fibers to allow easy, consistent stripping and to facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flameretardant outer jacket. The all-dielectric cable construction requires no grounding or bonding. For additional mechanical durability, an interlocking armored option is available. Ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations, these cables are available in 50 μm, 62.5 μm, single-mode and hybrid versions. The MIC Plenum Cables meet the application requirements of the National Electrical Code (NEC Article 770) and are OFNP and FT-6 listed. They are also offered with Gigabit Ethernet and 10 Gigabit Ethernet performance. Outside Diameter: 5.3 mm (0.21 in.) Maximum Tensile Loads: N (lbf) Short-Term: 440 (100) Long-Term: 132 (30) Minimum Bend Radius: cm (in.) Loaded: 8.0 (3.2) Installed: 2.7 (1.1) Temperatures: Storage: -40° to +70°C (-40° to +158°F) Installation: 0° to +60°C (+32° to +140°F) Operation: 0° to +70°C (+32° to +158°F)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
this is your Mick type buffer two interlocking armored cable with a plenum rating you have a six fiber 50 micron and om three the core is protected by a flexible spirally wrapped aluminum interlocking armor that offers easy one-step installation and over seven times the crush protection of unarmored cables with a flame retardant outer jacket this cable is particularly useful in heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables let's take a quick look at the construction of this cable don't forget we have a pre-terminated solution for a pull plug and play set up for you you can order online at discount low voltage calm
