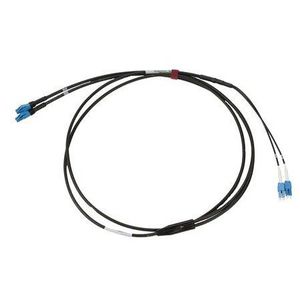

Commscope 35m OS2 4F LC/UPC - LC/UPC

slide rear body and protective sleeve with spring onto the cable make sure the fiber passes through the inner tube in the protection sleeve strip approximately 25 millimeter of buffer strip the 250 micron primary coating as well clean the fiber with a lint free wipe moistened with alcohol make sure the buffer is flush with the end of the fiber holder push the carriage with the wheel to its starting point place the fiber holder in the cleaver make sure it is all the way forward push down to cleave the fiber place the fiber holder over the two pins on the left side make sure the fiber lays in the groove next to the electrodes do not touch the fiber using the ferrule holder included with the package of connectors open the clamp and lay the fiber in the groove with the ferrule and the pocket under the clamp close the clamp use the white handle to move the ferrule sub-assembly never touch th
