Description
Fiber optical splitter is one of the important fiber passive components and tandem devices with a plurality of inputs and a plurality of output terminals. Specification: 1XN FBT 50/50 Fiber Optic Splitter Operation wavelength(nm):1260~1650 Insertion Loss:1X2:3.8/4.7dB;1x4:7.1/7.4dB;1x8:13.5/13.9dB;1x16:13.5/13.9dB;1x32:16.8/17.2dB;1x64:20.1/21.2dB Loss Uniformity:1X2:0.4dB;1x4:0.6dB;1x8:0.8dB;1x16:1.2dB;1x32:1.5dB;1x64:2.0dB Polarization Dependent Loss(dB):1X2:0.2dB;1x4:0.2dB;1x8:0.2dB;1x16:0.25dB;1x32:0.3dB;1x64:0.35dB Wavelength Dependent Loss(dB):1X2:0.3dB;1x4:0.3dB;1x8:0.3dB;1x16:0.5dB;1x32:0.5dB;1x64:0.5dB Temperature Dependent Loss (-40~85 ) (dB):1X2:0.4dB;1x4:0.4dB;1x8:0.4dB;1x16:0.5dB;1x32:0.5dB;1x64:0.5dB Return Loss (dB):55/50 Operating Temperature(℃):-40~+80 Directivity (dB):≥55 Storage Temperature(℃):-40~+80

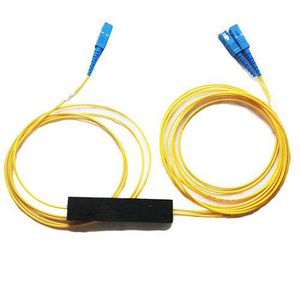

1 Piece 1 to 2 SC UPC FBT Fiber Optical Splitter FTTH Fiber Splitter
Price is below average
Current Price
$9.14
Average
$30.67
Min Price
$9.14
Max Price
$70.97
Price dynamics
70%
Description
Fiber optical splitter is one of the important fiber passive components and tandem devices with a plurality of inputs and a plurality of output terminals. Specification: 1XN FBT 50/50 Fiber Optic Splitter Operation wavelength(nm):1260~1650 Insertion Loss:1X2:3.8/4.7dB;1x4:7.1/7.4dB;1x8:13.5/13.9dB;1x16:13.5/13.9dB;1x32:16.8/17.2dB;1x64:20.1/21.2dB Loss Uniformity:1X2:0.4dB;1x4:0.6dB;1x8:0.8dB;1x16:1.2dB;1x32:1.5dB;1x64:2.0dB Polarization Dependent Loss(dB):1X2:0.2dB;1x4:0.2dB;1x8:0.2dB;1x16:0.25dB;1x32:0.3dB;1x64:0.35dB Wavelength Dependent Loss(dB):1X2:0.3dB;1x4:0.3dB;1x8:0.3dB;1x16:0.5dB;1x32:0.5dB;1x64:0.5dB Temperature Dependent Loss (-40~85 ) (dB):1X2:0.4dB;1x4:0.4dB;1x8:0.4dB;1x16:0.5dB;1x32:0.5dB;1x64:0.5dB Return Loss (dB):55/50 Operating Temperature(℃):-40~+80 Directivity (dB):≥55 Storage Temperature(℃):-40~+80
