Description
Features:

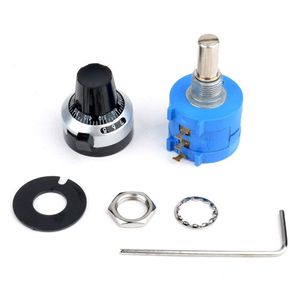

Components: 1pcs 10 turn potentiometer + 1pcs rotary dial knob + 1pcs small Hexagonal spanner
Application: this 10 turn potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipment.
Type: 10 turn rotary potentiometer with dial knob
Resistance: 100 Ohm; Working Voltage: 2W
Potentiometer Size: 22x38mm(W*H) Counting dial size:22x25mm(W*H)
Specifications:
Model: 3590S-2-101L
Turn: 10 turn
Resistance: 100 ohm
Resistance Tolerance: 5%
Working Power: 2W
Shape: Round
Element: Wireround
Material of Shaft: Nickel Plated Rail
Shaft Diameter: 6mm/0.23 inch
Threaded Diameter: 9mm/0.35 inch
Terminal: Solar Lug/Side
Taper-Linear: X
Linearity: 0.25%
Angle of Rotation: 3600˚
Rotational Life (No Load Cycle): 10000
100% Satisfaction Guarantee
12-Month Warranty; No satisfied ,Free reason for return;
We could also resend you new one due to quality problem.
Package Included:
1pcs 10 turn potentiometer
1pcs rotary dial knob
1pcs small Hexagonal spanner
Notes:
1. Please allow 1-3cm measure error.
2. The color of the actual items may slightly vary from the above images due to different computer screen, thanks for your understanding.
Components: 1pcs 10 turn potentiometer + 1pcs rotary dial knob + 1pcs small Hexagonal spanner
Application: this 10 turn potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipment.
Type: 10 turn rotary potentiometer with dial knob
Resistance: 100 Ohm; Working Voltage: 2W
