Description

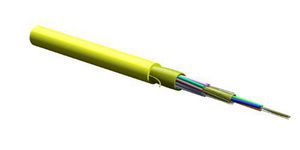

PRICE IS PER 10 FOOT Increments Corning MIC Tight-Buffered Cable, Plenum, 12 F, Single-mode (OS2), Yellow Outer Jacket Corning Cable Systems MIC Plenum Cables are designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations. These multi-fiber cables use 900 μm TBII Buffered Fibers to allow easy, consistent stripping and to facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flameretardant outer jacket. The all-dielectric cable construction requires no grounding or bonding. For additional mechanical durability, an interlocking armored option is available. Ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations, these cables are available in 50 μm, 62.5 μm, single-mode and hybrid versions. The MIC Plenum Cables meet the application requirements of the National Electrical Code (NEC Article 770) and are OFNP and FT-6 listed. They are also offered with Gigabit Ethernet and 10 Gigabit Ethernet performance. Outside Diameter: 6.1 mm (0.24 in.) Maximum Tensile Loads: N (lbf) Short-Term: 440 (100) Long-Term: 132 (30) Minimum Bend Radius: cm (in.) Loaded: 9.2 (3.6) Installed: 3.1 (1.2) Temperatures: Storage: -40deg; to +70deg; C (-40deg; to +158deg;F) Installation: 0deg; to +60deg;C (+32deg; to +140deg;F) Operation: 0deg; to +70deg;C (+32deg; to +158deg;F)
1000' Corning 012E88-33131-29 12 Fiber Plenum OS2 Single Mode MIC Tight-Buffered Distribution Cable
Current Price
$15
Average
$9.31
Min Price
$2.95
Max Price
$15
Price dynamics
38%
Description
PRICE IS PER 10 FOOT Increments Corning MIC Tight-Buffered Cable, Plenum, 12 F, Single-mode (OS2), Yellow Outer Jacket Corning Cable Systems MIC Plenum Cables are designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations. These multi-fiber cables use 900 μm TBII Buffered Fibers to allow easy, consistent stripping and to facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flameretardant outer jacket. The all-dielectric cable construction requires no grounding or bonding. For additional mechanical durability, an interlocking armored option is available. Ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations, these cables are available in 50 μm, 62.5 μm, single-mode and hybrid versions. The MIC Plenum Cables meet the application requirements of the National Electrical Code (NEC Article 770) and are OFNP and FT-6 listed. They are also offered with Gigabit Ethernet and 10 Gigabit Ethernet performance. Outside Diameter: 6.1 mm (0.24 in.) Maximum Tensile Loads: N (lbf) Short-Term: 440 (100) Long-Term: 132 (30) Minimum Bend Radius: cm (in.) Loaded: 9.2 (3.6) Installed: 3.1 (1.2) Temperatures: Storage: -40deg; to +70deg; C (-40deg; to +158deg;F) Installation: 0deg; to +60deg;C (+32deg; to +140deg;F) Operation: 0deg; to +70deg;C (+32deg; to +158deg;F)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hey what's going on guys I'm mercy discs LOL voltage calm and today we're going to take a look at a 48 strand endure 13 10 gauge fiber optic cable let's check it out corn and cable systems mi see plenum cables are designed for use in plenum riser and general purpose environments for intra building backbone installations these multi fiber cables used individually jacketed 900 um TB to buffered fibers enabling easy and consistent stripping and facilitating termination the stranded subunits of 6 or 12 fibers allow quick and easy identification and are surrounded by dielectric strength members and protected by flame retardant outer jacket the all dielectric cable construction requires no grounding or bonding making these cables ideal for routing inside buildings including riser shafts to telecommunications rooms and workstations we also do have a pre-terminated option for you if you want al
