Description:

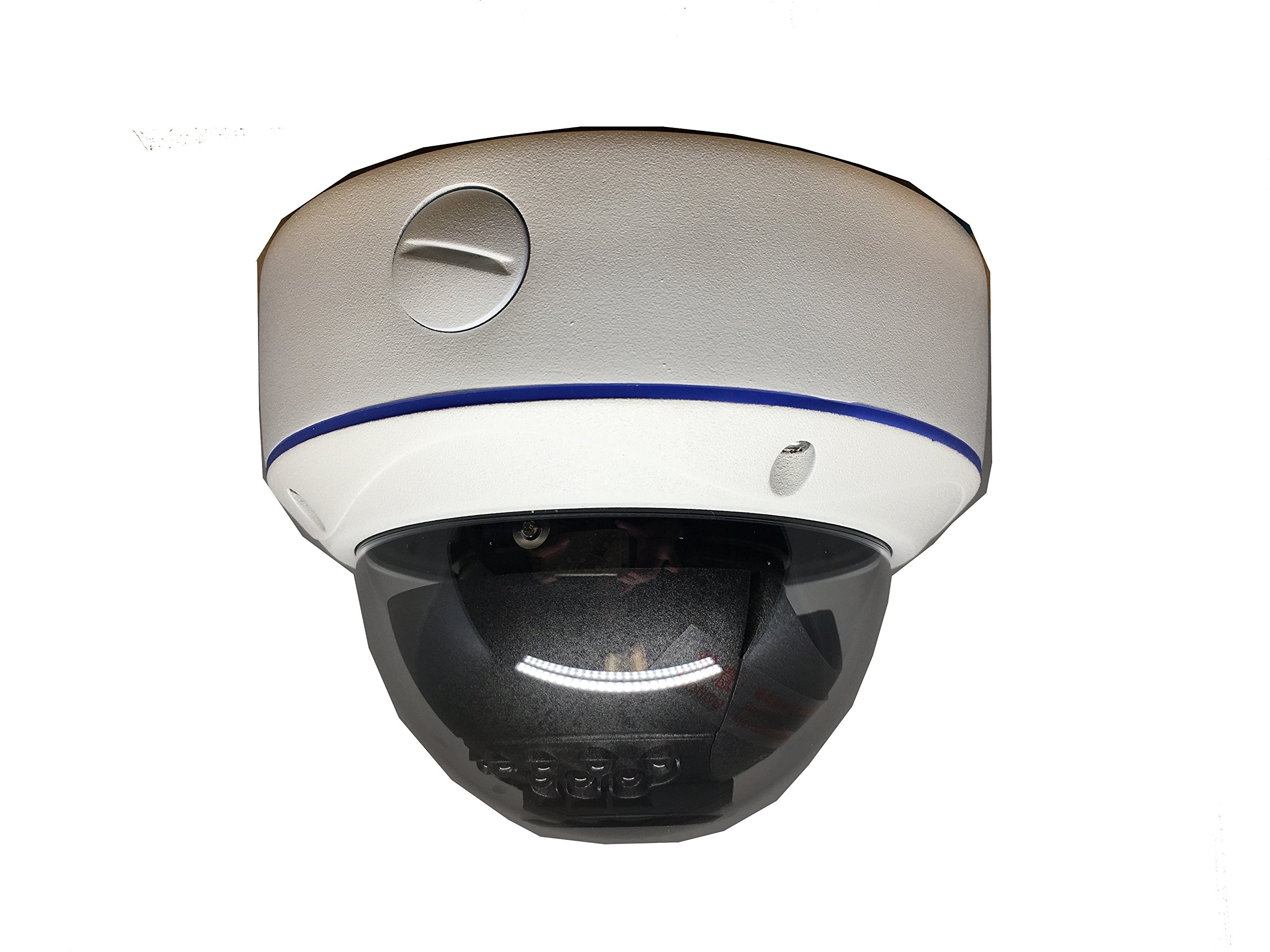

This 4in1 professional IR dome security camera employs 1/2.9″ SONY CMOS Image Sensor with 2.1 Megapixel Resolution and an advanced circuit design.
It adopts advanced image processing technology. The resolution is as high as 1080P, which ensures clear and bright pictures.
It has OSD Menu that can change the 4 different video output (HD-TVI, HD-AHD, HD-CVI, CVBS(1000TVL) and adjust the video setting. It also has WDR function. Built-in 2.8-12mm varifocal lens, effectively extend your observation range. With 18 pcs IR infrared LEDs, it has 100ft IR range, can change from color to black automatically and take clear picture during both day and night time.
The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It's easy to install. It can protect your office or home effectively.
Specification:
Model# VDT-2812R
Image Sensor: 1/2.9" Sony 2.1 Megapixel CMOS Sensor
Effective Pixels: 1920(H)x1080(V)
Signal System: NTSC
CVBS Output: 1280(H)/1000TVL
AHD2.0 Output: 1080p@25/30fps
TVI Output:1080p@25/30fps
CVI Output: 1080p@25/30fps
Mini Illumination: 0 Lux (IR On)
Lens: 2.8 - 12mm Lens
WDR: On/Off/Auto
Defog: OFF/AUTO
Backlight: OFF/BLC/HSBLC
White Balance: ATW/AWC->SET/INDOOR/OUTDOOR/MANUAL/AWB
NR(noise reduction): 2D/3D NOISE REDUCTION
Mirror Function: OFF/MIRROR/V-FLIP/ROTATE
Motion Detection: Off/On (4 areas)
Privacy Zones: Off/On (4 areas)
IR LED: 18 pcs infrared LED
IR distance: 100 feet
Languages: 12 languages
Weatherproof: IP66
Operation Temp: -20°C~55°C
Power: DC12V/ 200mA
Dimensions(mm): 150x107
Weight: 1120g
What's in the box?
4in1 True-HD IR Dome security camera x 1, User Manual, Screws.
101AV 1080P True Full-HD 4in1 (TVI, AHD, CVI, CVBS) 2.8-12mm Varifocal Lens IR in/Outdoor Dome Camera 2.1 MP 1920x1080 Image Sensor 18 pcs Smart IR 100ft IR Range DWDR UTC OSD
Description:
This 4in1 professional IR dome security camera employs 1/2.9″ SONY CMOS Image Sensor with 2.1 Megapixel Resolution and an advanced circuit design.
It adopts advanced image processing technology. The resolution is as high as 1080P, which ensures clear and bright pictures.
It has OSD Menu that can change the 4 different video output (HD-TVI, HD-AHD, HD-CVI, CVBS(1000TVL) and adjust the video setting. It also has WDR function. Built-in 2.8-12mm varifocal lens, effectively extend your observation range. With 18 pcs IR infrared LEDs, it has 100ft IR range, can change from color to black automatically and take clear picture during both day and night time.
The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It's easy to install. It can protect your office or home effectively.
Specification:
Model# VDT-2812R
Image Sensor: 1/2.9" Sony 2.1 Megapixel CMOS Sensor
Effective Pixels: 1920(H)x1080(V)
Signal System: NTSC
CVBS Output: 1280(H)/1000TVL
AHD2.0 Output: 1080p@25/30fps
TVI Output:1080p@25/30fps
CVI Output: 1080p@25/30fps
Mini Illumination: 0 Lux (IR On)
Lens: 2.8 - 12mm Lens
WDR: On/Off/Auto
Defog: OFF/AUTO
Backlight: OFF/BLC/HSBLC
White Balance: ATW/AWC->SET/INDOOR/OUTDOOR/MANUAL/AWB
NR(noise reduction): 2D/3D NOISE REDUCTION
Mirror Function: OFF/MIRROR/V-FLIP/ROTATE
Motion Detection: Off/On (4 areas)
Privacy Zones: Off/On (4 areas)
IR LED: 18 pcs infrared LED
IR distance: 100 feet
Languages: 12 languages
Weatherproof: IP66
Operation Temp: -20°C~55°C
Power: DC12V/ 200mA
Dimensions(mm): 150x107
Weight: 1120g
What's in the box?
4in1 True-HD IR Dome security camera x 1, User Manual, Screws.
