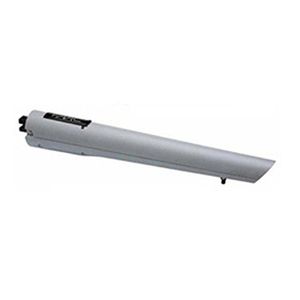

104301 FAAC S418 Swing Gate Operator 24VDC Arm Only

The FAAC Model S418 automated system for swing-leaf gates is an electro-mechanical operator which transmits its movement to the gate leaf by means of a worm-screw system. The irreversible system guarantees mechanical locking of the leaf when the motor is not operating. An easy-to-use release device permits movement of the leaf in case of malfunction or a power outage. The adjustable rear bracket permits the operator to be installed on most existing gate applications.

104301 FAAC S418 Swing Gate Operator 24VDC Specifications:

Power Supply: (VDC) 24
Nominal Power: (W) 35
Absorbed Current: (A) 1.5
Maximum Thrust Force: (lbf) 405
Stroke: (inches) 13 3/4 1
Cycles per day at 68 °F: (approx) 80
Class of operation: Residential
Rod speed: (inches/sec) 0.7
Maximum Size of Leaf: (feet) 12
Ambient Operating Temperature: (°F) -4 to 131
Protection Class: IP54
