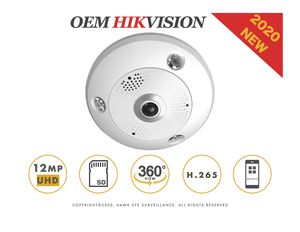

✔The Hawkeye Surveillance Fisheye Camera offers a full 180 degree horizontal or vertical view in a compact package. Ceiling mounting or wall mounting for flexible installation options. The 30 ft (8 m) IR range provides well lit images in low light conditions.
Specifications
Image Sensor: 1/1.7" progressive scan CMOS
Min. Illumination: 0.05 lux @ (F1.2, AGC ON)0.3 lux @ (F2.8, AGC ON )0 lux with IR
Shutter Speed: 1/25 (1/30)s ~ 1/100,000s
Lens: 1.19mm @F2.8, angle of view: 360°
Lens mount: M12
Day & Night: ICR
Video Compression: H.264/MJPEG
H.264 Type: Baseline Profile / Main Profile / High Profile
Video Bit Rate: 32 Kbps - 16 Mbps
Max. Resolution: 12MP CMOS (4000×3072)
Frame Rate: 20fps (4000×3000), 30fps (4096×2160)
Number of Streams: High Frame Rate Mode: 1 or 4Multi-Channel: up to 5(No sub-streams)
Digital Noise Reduction: 3D DNR
Wide Dynamic Range: Digital WDR
Image Setting: Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance
High Light Compensation: Support
Day/night Switch: Auto / Manual / Scheduled / Alarm trigger
Network Storage: NAS, SAMB / CIFS
Alarm trigger: Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict, storage full,storage error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security: User Authentication, Watermark, IP address filtering, Anonymous access
Standard: ONVIF, PSIA, CGI
Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port1 RS-485 interface (-S)
On-board storage: Built-in Micro SD/SDXC slot, up to 64 GB
Operating Conditions: -30 °C - 60 °C (-22 °F - 140 °F)Humidity 95% or less (non-condensing)
Power Supply: DC12V±10% / PoE
Power Consumption: Max. 11W
IR range: Max. 30ft
Protection: IK10
12MP Fisheye Network PoE Camera - Compatible with Hikvision Smart SeriesDS-2CD63C2F-IVS
✔The Hawkeye Surveillance Fisheye Camera offers a full 180 degree horizontal or vertical view in a compact package. Ceiling mounting or wall mounting for flexible installation options. The 30 ft (8 m) IR range provides well lit images in low light conditions.
Specifications
Image Sensor: 1/1.7" progressive scan CMOS
Min. Illumination: 0.05 lux @ (F1.2, AGC ON)0.3 lux @ (F2.8, AGC ON )0 lux with IR
Shutter Speed: 1/25 (1/30)s ~ 1/100,000s
Lens: 1.19mm @F2.8, angle of view: 360°
Lens mount: M12
Day & Night: ICR
Video Compression: H.264/MJPEG
H.264 Type: Baseline Profile / Main Profile / High Profile
Video Bit Rate: 32 Kbps - 16 Mbps
Max. Resolution: 12MP CMOS (4000×3072)
Frame Rate: 20fps (4000×3000), 30fps (4096×2160)
Number of Streams: High Frame Rate Mode: 1 or 4Multi-Channel: up to 5(No sub-streams)
Digital Noise Reduction: 3D DNR
Wide Dynamic Range: Digital WDR
Image Setting: Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance
High Light Compensation: Support
Day/night Switch: Auto / Manual / Scheduled / Alarm trigger
Network Storage: NAS, SAMB / CIFS
Alarm trigger: Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict, storage full,storage error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security: User Authentication, Watermark, IP address filtering, Anonymous access
Standard: ONVIF, PSIA, CGI
Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port1 RS-485 interface (-S)
On-board storage: Built-in Micro SD/SDXC slot, up to 64 GB
Operating Conditions: -30 °C - 60 °C (-22 °F - 140 °F)Humidity 95% or less (non-condensing)
Power Supply: DC12V±10% / PoE
Power Consumption: Max. 11W
IR range: Max. 30ft
Protection: IK10
