Description
Main Parameter
DC Output Range: 12V,0~100A
Rated Power: 1200W
Input voltage:110V(85-145V )
Range Of Difference:±1%
Efficiency: >80%
Output adjustable voltage range: ±3%
Frequency: 50-60Hz
Leakage current: <1mA/230V
Temperature coefficient: ±0.03%/℃(0~50℃)
Start, rise, hold time 200ms, 50ms, 20ms
Seismic resistance: 10~500Hz,2G 10min, /1 cycle, time 60 points, each axis
Protection: overload, overvoltage, overcurrent, short circuit protection
Pressure resistance between input and output 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC
The working temperature and humidity are between -10 and +60, and the temperature ranges from 20% to 90%RH
The storage temperature and humidity are -20 ~ +85, 10% ~ 95%RH
Product Size: 242*125*65mm
Product Weight: 1.5kg
Note: This product has a cooling fan to perform a sound (the sound of a fan rotates)
Cautions:
It 's suggested that total power consumption of the loads to be connected be not more than 80% of the rate power of product
Our company specializes in the production of transformers, switching power supply, industrial power supply, monitoring power supply, motor power, LED drive power, LED band, industrial lights, home lights, etc
All products through CE, FCC certification, large quantity, more affordable price, welcome to consult and negotiate

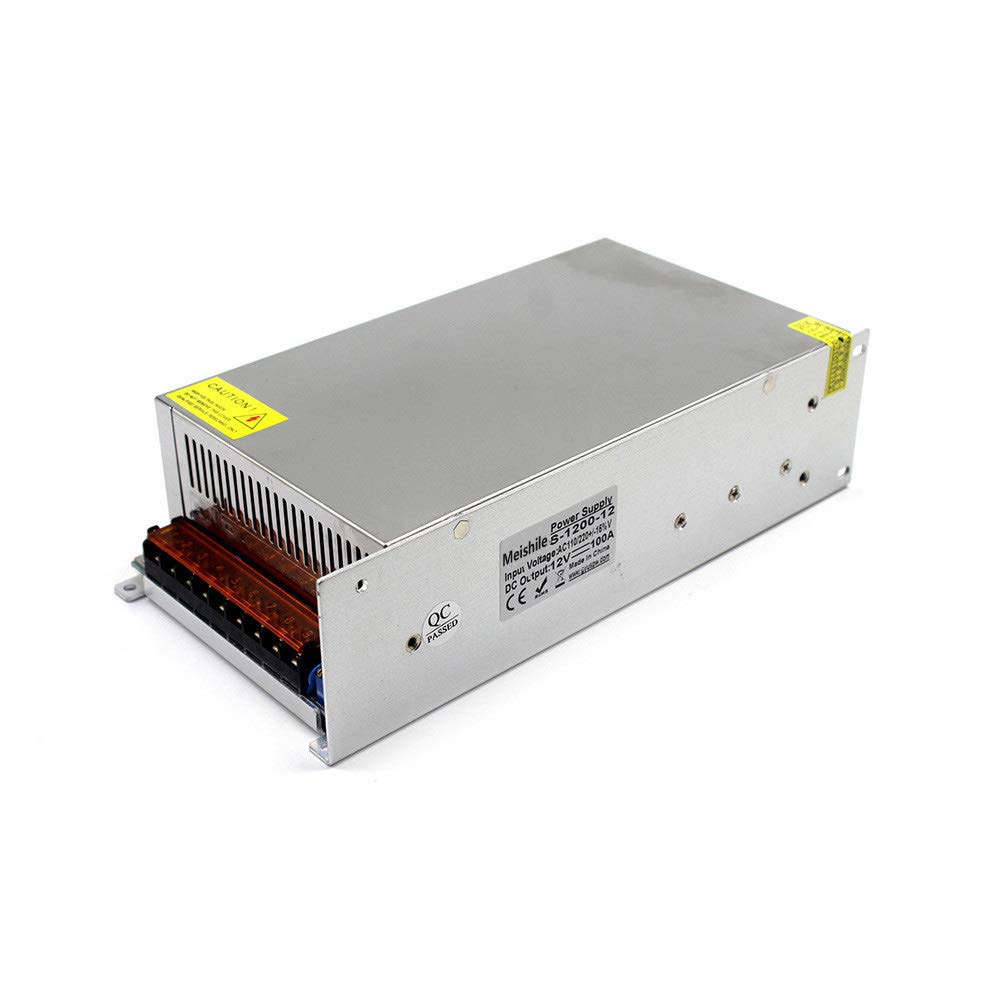

12V 100A 1200W LED Driver Switching Power Supply (SMPS)110VAC-DC12V Monitoring power supply Industrial Power Transformer CCTV
