12V Battery Charging Controller Protection Board Module, Undervoltage Low Voltage Cut Off Automatic Switch Recovery Protection Controller Module

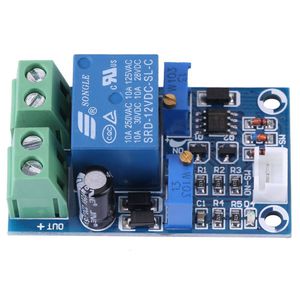

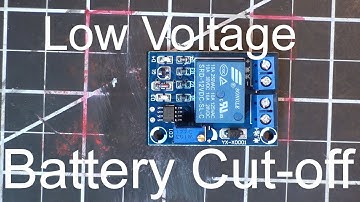

all righty then this morning we have a very tiny or small battery cutoff this is a small under-voltage switch you put this in between your load and a battery and when the voltage drops below a certain voltage the relay will cut out and disconnect your load so you don't run your battery too low it is supposedly set from the factory at ten point five volts personally I would probably set it to a higher setting than that but depends on how much your juice you're trying to get out of your battery there is a small LED here that indicates it has power your pot to adjust the voltage at which it will cut out it's meant for 12 volt DC power consumption is less than ten milliamps can can handle a 10 amp resistive load and based on what I'm seeing here with these traces that's that's fairly accurate it probably can handle it no problem and the relay is rated at a maximum of 10 amps the size of thi
