Description
Feature: Module Properties: non-isolated buck-boost module Input voltage: DC 3-35V Output voltage: DC 1. 25-30V (adjustable) Output Current: 2A (when 9-35V input and 12V output, if 5V output can achieve 3A) Input Current: 3. 5A (MAX) Output power: natural cooling 18W (input voltage greater than 10V), if install heat sink can achieve 24W Output ripple: 20M bandwidth (for reference) Input 10-14V, output 12V 0. 2A, ripple 50mV Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation) Full load temperature rise: 45°c No-load current: Typical 10mA (10-14V switch 12V) Load regulation: +/-1% Voltage regulation: +/-0. 5% Dynamic response speed: 5% 200uS Short circuit protection: Yes (10 seconds) Input Reverse Polarity Protection: None (Please Series diode at the input port. ) Installation: can screw (diameter 3 mm), 2 fixing holes Connection: Welding, can be directly soldered to a PCB Applications: Battery voltage regulator, 12V battery (10-14V) can output voltage at 12V, 24V battery output voltage at 24V. Solar charging regulator, it can stabilize voltage fluctuations in solar cells, and can give the battery charge, battery to avoid overshoot. In order to power your electronic devices, designed for wide voltage range. Package Includes: 1x DC-DC Converter

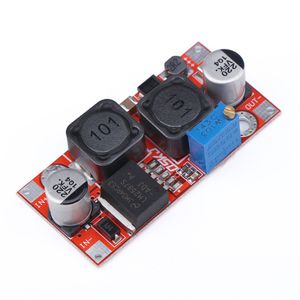

Voltage Regulator Board, DROK DC 3V-35V to 1.2-30V Auto Step Up Down Volt Converter 2A 24W LM2587 Buck Boost Converter Module 5V 6V 9V 12V 24V Solar Battery Energy Power Supply Charging Board
Current Price
$9.37
Average
$8.87
Min Price
$5.2
Max Price
$10.47
Price dynamics
5%
Description
Feature: Module Properties: non-isolated buck-boost module Input voltage: DC 3-35V Output voltage: DC 1. 25-30V (adjustable) Output Current: 2A (when 9-35V input and 12V output, if 5V output can achieve 3A) Input Current: 3. 5A (MAX) Output power: natural cooling 18W (input voltage greater than 10V), if install heat sink can achieve 24W Output ripple: 20M bandwidth (for reference) Input 10-14V, output 12V 0. 2A, ripple 50mV Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation) Full load temperature rise: 45°c No-load current: Typical 10mA (10-14V switch 12V) Load regulation: +/-1% Voltage regulation: +/-0. 5% Dynamic response speed: 5% 200uS Short circuit protection: Yes (10 seconds) Input Reverse Polarity Protection: None (Please Series diode at the input port. ) Installation: can screw (diameter 3 mm), 2 fixing holes Connection: Welding, can be directly soldered to a PCB Applications: Battery voltage regulator, 12V battery (10-14V) can output voltage at 12V, 24V battery output voltage at 24V. Solar charging regulator, it can stabilize voltage fluctuations in solar cells, and can give the battery charge, battery to avoid overshoot. In order to power your electronic devices, designed for wide voltage range. Package Includes: 1x DC-DC Converter
