Description
Package Include:

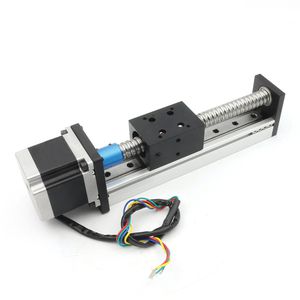

1pcs CBX1605 ballscrew 150mm length Linear Stage Actuator with 1pcs NEMA23 RTM23HS6430 2-Phase Stepper motor
Stepper motor Parameter:
Name: RTM23HS6430
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-
Linear Stage Actuator Parameter
Series: CBX1605-150A
Profile Width: 42mm
Drive Type: CBX1605 Ballscrew
Screw precision grade: C7
Screw Pitch: 5mm
Linear Type: Square Linear Rails
Bearing Type: Single Square HGH Carriages
Motor Type: 2-Phase Nema23 High torque Stepper Motor
Effective Travel Length: 150mm / 5.90 inch
Accuracy: 0.3mm / 0.01inch
Max. Speed: 50mm/s,2inch/s
Horizontal load: 30Kgs / 66.2lbs
Vertical load: 10Kgs / 44lbs
Axial Load Capacity: 22Kgs / 44lbs
Overall Length: 319 mm
We accept 100-1500mm Length Customize
Have no CAD drawings!!!
1pcs CBX1605 ballscrew 150mm length Linear Stage Actuator with 1pcs NEMA23 RTM23HS6430 2-Phase Stepper motor
Stepper motor Parameter:
Name: RTM23HS6430
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-
Linear Stage Actuator Parameter
Series: CBX1605-150A
Profile Width: 42mm
Drive Type: CBX1605 Ballscrew
Screw precision grade: C7
Screw Pitch: 5mm
Linear Type: Square Linear Rails
Bearing Type: Single Square HGH Carriages
Motor Type: 2-Phase Nema23 High torque Stepper Motor
Effective Travel Length: 150mm / 5.90 inch
Accuracy: 0.3mm / 0.01inch
Max. Speed: 50mm/s,2inch/s
Horizontal load: 30Kgs / 66.2lbs
Vertical load: 10Kgs / 44lbs
Axial Load Capacity: 22Kgs / 44lbs
Overall Length: 319 mm
We accept 100-1500mm Length Customize
Have no CAD drawings!!!
150mm Length Travel Linear Stage Actuator with Square Linear Rails + CBX1605 Ball Screw 1605 Ballscrew Motorized XY XYZ Linear Stage Table with NEMA23 Stepper Motor for DIY CNC Router Milling Machine
Price is below average
Current Price
$109
Average
$109.77
Min Price
$92
Max Price
$134.8
Price dynamics
1%
Description
Package Include:
1pcs CBX1605 ballscrew 150mm length Linear Stage Actuator with 1pcs NEMA23 RTM23HS6430 2-Phase Stepper motor
Stepper motor Parameter:
Name: RTM23HS6430
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-
Linear Stage Actuator Parameter
Series: CBX1605-150A
Profile Width: 42mm
Drive Type: CBX1605 Ballscrew
Screw precision grade: C7
Screw Pitch: 5mm
Linear Type: Square Linear Rails
Bearing Type: Single Square HGH Carriages
Motor Type: 2-Phase Nema23 High torque Stepper Motor
Effective Travel Length: 150mm / 5.90 inch
Accuracy: 0.3mm / 0.01inch
Max. Speed: 50mm/s,2inch/s
Horizontal load: 30Kgs / 66.2lbs
Vertical load: 10Kgs / 44lbs
Axial Load Capacity: 22Kgs / 44lbs
Overall Length: 319 mm
We accept 100-1500mm Length Customize
Have no CAD drawings!!!
1pcs CBX1605 ballscrew 150mm length Linear Stage Actuator with 1pcs NEMA23 RTM23HS6430 2-Phase Stepper motor
Stepper motor Parameter:
Name: RTM23HS6430
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-
Linear Stage Actuator Parameter
Series: CBX1605-150A
Profile Width: 42mm
Drive Type: CBX1605 Ballscrew
Screw precision grade: C7
Screw Pitch: 5mm
Linear Type: Square Linear Rails
Bearing Type: Single Square HGH Carriages
Motor Type: 2-Phase Nema23 High torque Stepper Motor
Effective Travel Length: 150mm / 5.90 inch
Accuracy: 0.3mm / 0.01inch
Max. Speed: 50mm/s,2inch/s
Horizontal load: 30Kgs / 66.2lbs
Vertical load: 10Kgs / 44lbs
Axial Load Capacity: 22Kgs / 44lbs
Overall Length: 319 mm
We accept 100-1500mm Length Customize
Have no CAD drawings!!!
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
