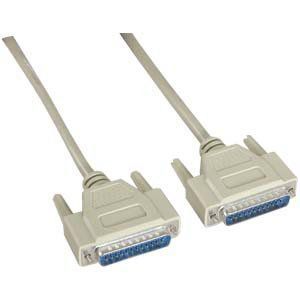

15Ft DB25 M/M Serial Cable 25C Straight

DB25 soket and soldering Jig Tinned every 25 contacts 8ch multi audio snake Shrink tubing insert Cut outer tube about 1.5 inch from end Make sure that the blade does not damage the inside Remove membrane Remove internal tendons The order of the cables is a typical resistance color Trim every cable Use wire stripper Vector is handy Lines that are likely to be short-circuited are previously treated with shrink tubing Tinned every 24 contacts In order of TASCAM DB25 pinout Number 13 does not use Solder it side by side Use heat gun to shirink the tube Cut length by you want Shrink tube 4 inch 1 AWG Vinyl tube White shrink tube Write numbers properly You can see numbers in darkness with little light It is not over yet. The verification remains. Sound Devices 970 Analog 1-8 input Aphex 1788A line level output all set perfect
