Description
The waterproof, weather-resistant Blue Sea Thermal Circuit Breaker combines switching and circuit protection into one unit. Large lever with vertical/horizontal orientation provides clear operation and indication of trip status. "Trip Free" design cannot be held ON during fault current condition. Ignition protected for safe installation aboard gasoline powered boats. Thermally responsive bi-metal blade circuit breaker with manual reset falls into the Type III class. Thermoset polyester case. Recessed mounting holes with a lot of clearance for heavy-gauge wire lugs with 5/16" M8 terminals for high-torque connections (75 in-lb). Mounting holes on surface mount model accept #10 M5 screws. Operates in extreme temperatures (-40ºC to +85ºC). Meets SAE J1171 external ignition protection requirements. CE marked. Waterproof to IP66. Not suitable for direct control of high inrush loads such as motor starting.
Interrupt Rating:
• 5,000A @ 12V DC
• 3,000A @ 24V DC
• 1,500A @ 42V DC
Max Voltage: 48V DC
Interrupt Rating:
• 5,000A @ 12V DC
• 3,000A @ 24V DC
• 1,500A @ 42V DC
Max Voltage: 48V DC

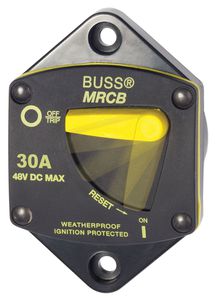

187 Series Thermal Circuit Breaker, Panel Mount, 7036, 30A
Current Price
$67.29
Average
$61.88
Min Price
$13.35
Max Price
$87.41
Price dynamics
8%
Description
The waterproof, weather-resistant Blue Sea Thermal Circuit Breaker combines switching and circuit protection into one unit. Large lever with vertical/horizontal orientation provides clear operation and indication of trip status. "Trip Free" design cannot be held ON during fault current condition. Ignition protected for safe installation aboard gasoline powered boats. Thermally responsive bi-metal blade circuit breaker with manual reset falls into the Type III class. Thermoset polyester case. Recessed mounting holes with a lot of clearance for heavy-gauge wire lugs with 5/16" M8 terminals for high-torque connections (75 in-lb). Mounting holes on surface mount model accept #10 M5 screws. Operates in extreme temperatures (-40ºC to +85ºC). Meets SAE J1171 external ignition protection requirements. CE marked. Waterproof to IP66. Not suitable for direct control of high inrush loads such as motor starting.
Interrupt Rating:
• 5,000A @ 12V DC
• 3,000A @ 24V DC
• 1,500A @ 42V DC
Max Voltage: 48V DC
Interrupt Rating:
• 5,000A @ 12V DC
• 3,000A @ 24V DC
• 1,500A @ 42V DC
Max Voltage: 48V DC
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
