Description:

- Type:Aviation Plug And Socket Optional:2/3/5/6/8 Pins and sockets Diameter:16mm
- Ambient temperature: -50 ~ +70 C Relative humidity: up to 98% at +40 C
- Atmospheric pressure: up to 4,4 kpa Centrifugal: acceleration 250m/s2
- Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
- Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
- Temperature Rise: at rated load, the contact of the temperature rise should not exceed +50 C ambient temperature
- Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged.

Specification:

- Shell Material: Zinc alloy
- Total length: 45.7mm/ 1.8inch
- Widest diameter: 18.8mm/ 0.74inch
- Rated voltage: 2 Pin/ 3 Pin - 400V, 5 Pin/ 6 Pin/ 8 Pin - 250V
- Rated current: 5A
- Contact resistance: (per contact pair) less than 0.005Ω
- Insulation resistance: under normal conditions, not less than 1000MΩ

Package Includes:

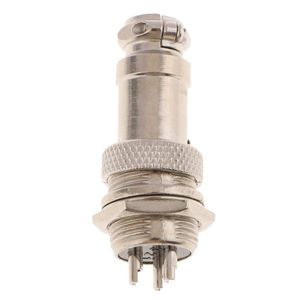

1 Pair GX16 Aviation Plug & Socket
