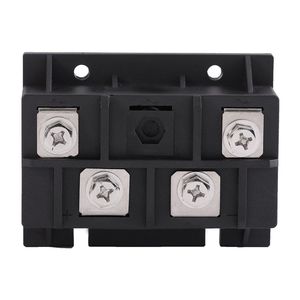

1pc 200A 1600V High Power Single Phase Diode Rectifier Bridge Module 4 Terminals

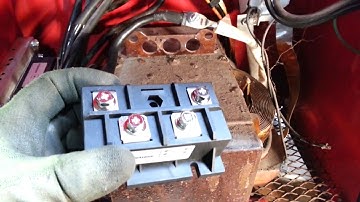

all right so I'm just at the end of this transition using a 300 amp wave rectifier for this AC Lincoln 225 welder instead of going through the whole process here and there are some people that have like a 20 minute video I'll see if I can get this in like two minutes showing everything is kind of worrying and redundant but I want to go over is just kind of exactly what I did no one really went over a whole lot and other videos they just kind of did it in recorder what they were doing and you couldn't see a whole lot so once you take the back of the case off here you take the fan component out you'll have that back there all the screws and everything you can see inside here is the selectors and you've got your brush that goes around to select whatever setting you have this is actually the positive electrode cable this feeds up through the back here you've got this metal plate that's on t
