Description
Small size with high efficiency,maintenance-free
Use ceramics shaft and carbon fiber sleeve
Completely water proof (IP68)
Brush-less dc control without pollution, long life span
Support long-term continuous operation
Specification:
Model: DC50F-24150S
Threads standard:NPT(American, 60-degree threads)
Pump size:4.2x3.5x2.7in/109x91x71.5mm
Weight:16.9oz/480g
Pump inlet&outlet OD:3/4 inches thread(20mm)
Driving mechanism:Brush-less, magnetic isolated design
Pump housing material: Plastic
Condition of use:Can continuously work, submersible or land use (not self-priming)
Suitable medium:Water,oil,or normal acid/ alkaline liquids
Maximum operating temperature:60℃(for T sub-series) or 100℃(for S/A sub-series)
Power consumption: 2.5W~86.4W[three-phase]
Working voltage range:5V DC ~ 26V DC(maximum)
Maximum load current:3.8A[three phase]
Max horizontal flow rate: 410GPH [three phase]
Maximum static head: 49ft/15M[three phase]
Noise:<40dB (1M distance)
Waterproof rating:IP68 (suitable for submersible installation)
Life span: More than 30,000 hours
Power supply:Suitable solar panel,batteries,adapter or other power source
Note:
1.Three-phase dc is completely different with Three-phase AC; 3-phase DC means 3 pairs of magnetic polarity & sensor-less, power supply the same with common DC pump(two wires: positive and negative)
2.Two-phase pump: Driven with sensor, controller should be inside pump body. No leaking, NO Wearing, only for normal usage(not suitable for high temperature, vibration and high switching frequency environment)
3.Three-phase pump: Driven by sensor-less controller, controller and pump body separate, suitable for high temperature and complicated environments with self-protect function. Soft start without impulse.
Use ceramics shaft and carbon fiber sleeve
Completely water proof (IP68)
Brush-less dc control without pollution, long life span
Support long-term continuous operation
Specification:
Model: DC50F-24150S
Threads standard:NPT(American, 60-degree threads)
Pump size:4.2x3.5x2.7in/109x91x71.5mm
Weight:16.9oz/480g
Pump inlet&outlet OD:3/4 inches thread(20mm)
Driving mechanism:Brush-less, magnetic isolated design
Pump housing material: Plastic
Condition of use:Can continuously work, submersible or land use (not self-priming)
Suitable medium:Water,oil,or normal acid/ alkaline liquids
Maximum operating temperature:60℃(for T sub-series) or 100℃(for S/A sub-series)
Power consumption: 2.5W~86.4W[three-phase]
Working voltage range:5V DC ~ 26V DC(maximum)
Maximum load current:3.8A[three phase]
Max horizontal flow rate: 410GPH [three phase]
Maximum static head: 49ft/15M[three phase]
Noise:<40dB (1M distance)
Waterproof rating:IP68 (suitable for submersible installation)
Life span: More than 30,000 hours
Power supply:Suitable solar panel,batteries,adapter or other power source
Note:
1.Three-phase dc is completely different with Three-phase AC; 3-phase DC means 3 pairs of magnetic polarity & sensor-less, power supply the same with common DC pump(two wires: positive and negative)
2.Two-phase pump: Driven with sensor, controller should be inside pump body. No leaking, NO Wearing, only for normal usage(not suitable for high temperature, vibration and high switching frequency environment)
3.Three-phase pump: Driven by sensor-less controller, controller and pump body separate, suitable for high temperature and complicated environments with self-protect function. Soft start without impulse.

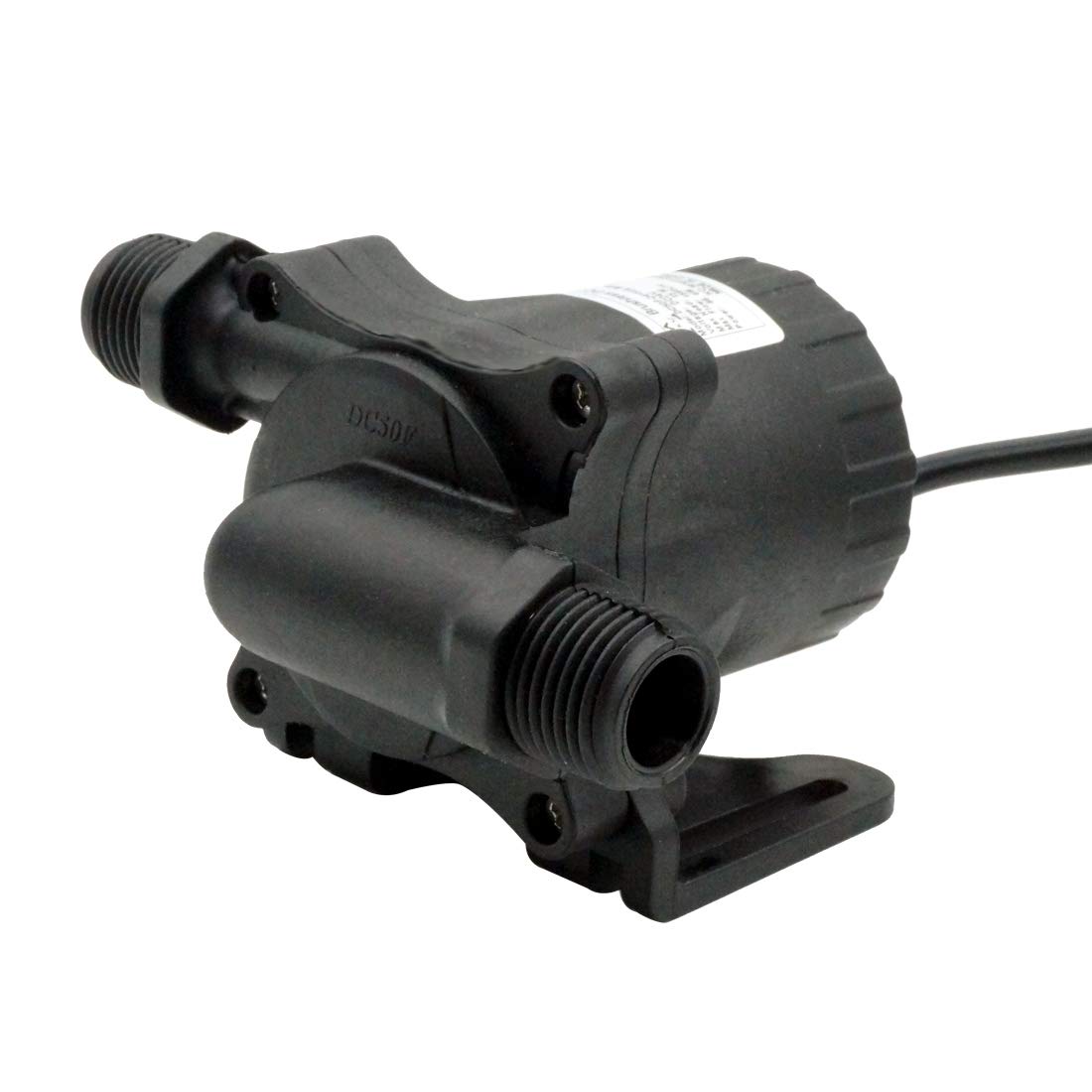

24V DC Circulation Pump 410GPH Inlet&Outlet 3/4 Inches 20mm NPT 60 Threads Static Head 49ft Brushless Submersible Installation High Temperature Resistance Garden Fountain Pump DC50F-24150S
