Description

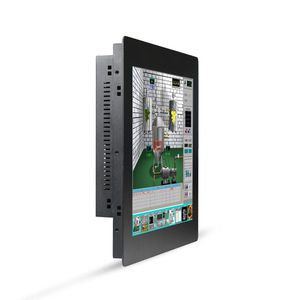

Model Number: Partaker Z15T
Screen Size: 17 Inch
Front Panel: 2MM Ultra Thin
Opening Hole Size: 389*321mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive Touch Screen
CPU: Intel Core I7
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 406.5*338.5*57.7(mm)
Gross Weight: 9 KGS
Panel Structure:
Panel Size: 17 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 46CM(L)*40.5CM(W)*14.3CM(H)
Physical Weight: 5.1KG / 6.4KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set
Screen Size: 17 Inch
Front Panel: 2MM Ultra Thin
Opening Hole Size: 389*321mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive Touch Screen
CPU: Intel Core I7
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 406.5*338.5*57.7(mm)
Gross Weight: 9 KGS
Panel Structure:
Panel Size: 17 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 46CM(L)*40.5CM(W)*14.3CM(H)
Physical Weight: 5.1KG / 6.4KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set
2MM 17 Inch Industrial Touch Panel PC Intel I7 4G RAM 64G SSD 500G HDD Z15T
Current Price
$915.99
Average
$915.99
Min Price
$915.99
Max Price
$915.99
Description
Model Number: Partaker Z15T
Screen Size: 17 Inch
Front Panel: 2MM Ultra Thin
Opening Hole Size: 389*321mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive Touch Screen
CPU: Intel Core I7
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 406.5*338.5*57.7(mm)
Gross Weight: 9 KGS
Panel Structure:
Panel Size: 17 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 46CM(L)*40.5CM(W)*14.3CM(H)
Physical Weight: 5.1KG / 6.4KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set
Screen Size: 17 Inch
Front Panel: 2MM Ultra Thin
Opening Hole Size: 389*321mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive Touch Screen
CPU: Intel Core I7
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 406.5*338.5*57.7(mm)
Gross Weight: 9 KGS
Panel Structure:
Panel Size: 17 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 46CM(L)*40.5CM(W)*14.3CM(H)
Physical Weight: 5.1KG / 6.4KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
