Description
Model Number: Partaker Z16T
Screen Size: 19 Inch
Front Panel: 2MM Ultra Thin
Opening Hole Size: 435*359mm (Length*Width)
Screen Type: Taiwan High Temperature 5 Wire Touch Screen
CPU: Intel Core I5 3317u
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD

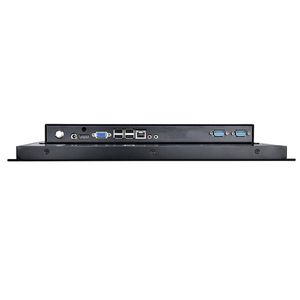

I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 452.5*376.5*59.5(mm)
Gross Weight: 11.5 KGS
Panel Structure:
Panel Size: 19 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 47.5CM(L)*43.5CM(W)*15CM(H)
Physical Weight: 6.25KG / 7.5KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set
Screen Size: 19 Inch
Front Panel: 2MM Ultra Thin
Opening Hole Size: 435*359mm (Length*Width)
Screen Type: Taiwan High Temperature 5 Wire Touch Screen
CPU: Intel Core I5 3317u
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 452.5*376.5*59.5(mm)
Gross Weight: 11.5 KGS
Panel Structure:
Panel Size: 19 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 47.5CM(L)*43.5CM(W)*15CM(H)
Physical Weight: 6.25KG / 7.5KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set
2MM 19 Inch Taiwan 5 Wires IPC Touch Panel PC I5 3317U 8G RAM 240G SSD Z16T
