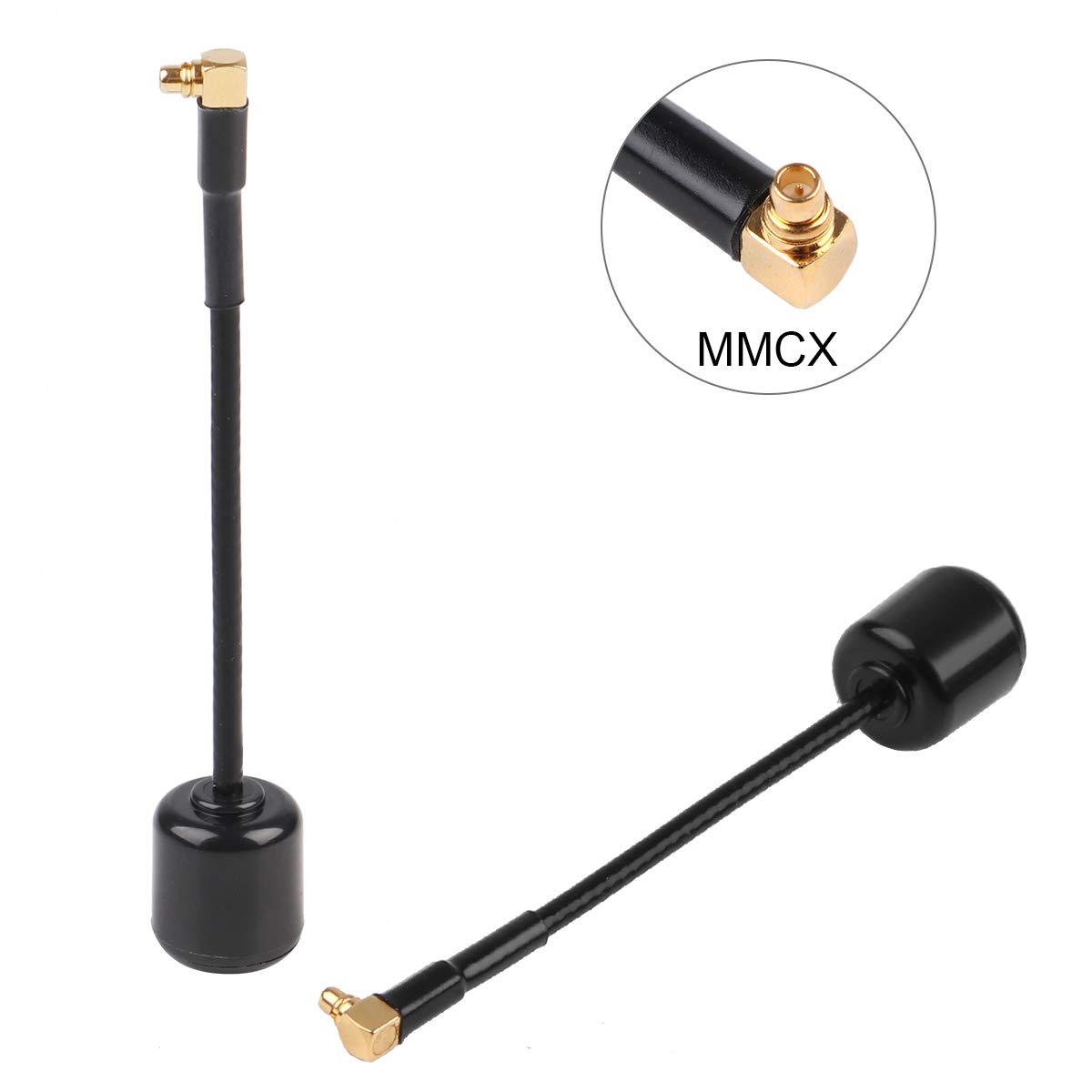

Makerfire 2pcs 5.8GHZ FPV Antenna MMCX Drone Antenna Omni TX RX RHCP for Mini FPV Quadcopeter FPV Goggles

Parameter: Connector: MMCX; Size: 81mm,Weight:3.26g

Frequency Range: The drone antenna has a center frequency of 900MHz and a (5100-6000 MHz) bandwidth range of 5.8GHz

Omnidirectional Antenna: Circularly polarized antenna for 5.8 GHz transmitters and receivers

Mini FPV Antenna with Great Performance: It has low feeder loss, easy to bend at any angle and maintain

Durable Material: Body made by copper + ABS material,  anti-collision, can withstand high-intensity impact, more steady gain and stronger signal

Specification:

Frequency range: 5100-6000 MHz

Gain : 2.3DBi

SWR: lt;1.5

2.3dB horizontal lobe width: 360

2.3dB vertical lobe width: 360

Max power: 50W

Resistance: 50 Omega;

Lightning protection: DC Grounded

Polarization: RHCP

Connector: MMCX

Size: 81mm (feeder line 65mm）

Weight: 3.26g

Material: Cu+ABS
