Description
Specifications
Working voltage: DC12V-24V
Relay load: 5A per channel
Controller: DMX512 3P D
mx512 Data: 0-127 Relay Switch OFF,128-255 Relay Switch ON
Size:120*55*20
Weight: 100g
DIP10 function key (FUN).
DIP10 (FUN) is OFF, as DMX512 mode, receive standard DMX512 signal. Occupies three address code, (R, G, B for each channel), DIP1-DIP9 address code setting.
When less than 127 DMX512 data relay off
DMX512 data is greater than 127 when the relay is closed
DIP10 (FUN) is ON, the built-in change mode and does not receive standard DMX512 signal. DIP1-DIP9 to invoke the built-in effects settings.

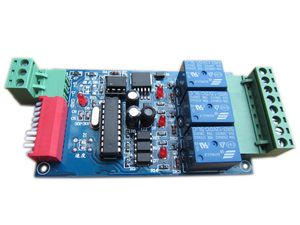

3 Channel 5A DMX512 Controlled Relay Switch Kit DIY Converter DMX Dimmer Relay
Current Price
$19.99
Average
$18.89
Min Price
$16.11
Max Price
$19.99
Price dynamics
6%
Description
Specifications
Working voltage: DC12V-24V
Relay load: 5A per channel
Controller: DMX512 3P D
mx512 Data: 0-127 Relay Switch OFF,128-255 Relay Switch ON
Size:120*55*20
Weight: 100g
DIP10 function key (FUN).
DIP10 (FUN) is OFF, as DMX512 mode, receive standard DMX512 signal. Occupies three address code, (R, G, B for each channel), DIP1-DIP9 address code setting.
When less than 127 DMX512 data relay off
DMX512 data is greater than 127 when the relay is closed
DIP10 (FUN) is ON, the built-in change mode and does not receive standard DMX512 signal. DIP1-DIP9 to invoke the built-in effects settings.
